2026 Felt · G

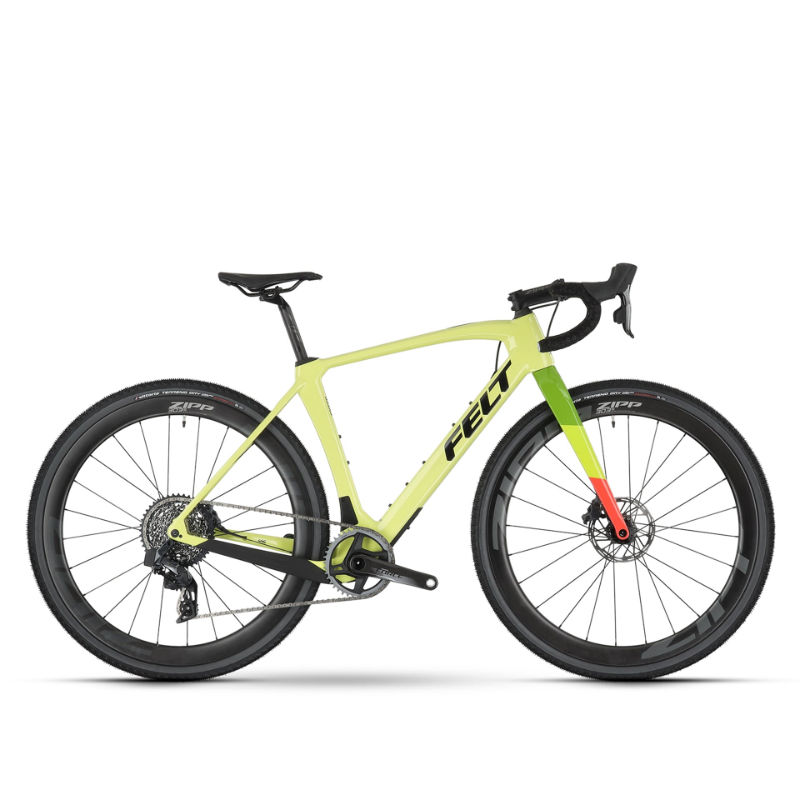

2026 Felt Breed geometry
Full frame geometry for the 2026 Felt Breed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 521.4 | 355.3 | 75.3 | 70.3 | 110 | 492.1 | 386 | 717.2 | 72 | 415 | 980 | 52 |
| 47 | 539.4 | 363.4 | 74.7 | 71.3 | 125 | 511 | 406 | 739 | 72 | 415 | 985.2 | 52 |
| 51 | 554.8 | 369.7 | 74.5 | 72 | 140 | 523.6 | 426 | 760.7 | 70 | 415 | 988.8 | 50 |
| 54 | 575.7 | 378 | 74 | 72.5 | 160 | 543.1 | 456 | 790.8 | 70 | 415 | 998.9 | 50 |
| 56 | 594.8 | 386.1 | 73.5 | 72.5 | 180 | 562.3 | 476 | 812 | 70 | 415 | 1013 | 50 |
| 58 | 613.8 | 393.1 | 73 | 72.5 | 200 | 580.8 | 496 | 833.3 | 70 | 417 | 1028.1 | 50 |
| 61 | 632.9 | 401.2 | 73 | 72.5 | 220 | 594.7 | 526 | 861.6 | 70 | 417 | 1042.2 | 50 |
All measurements in millimetres unless marked (°) for angles.
