2019 Felt · G

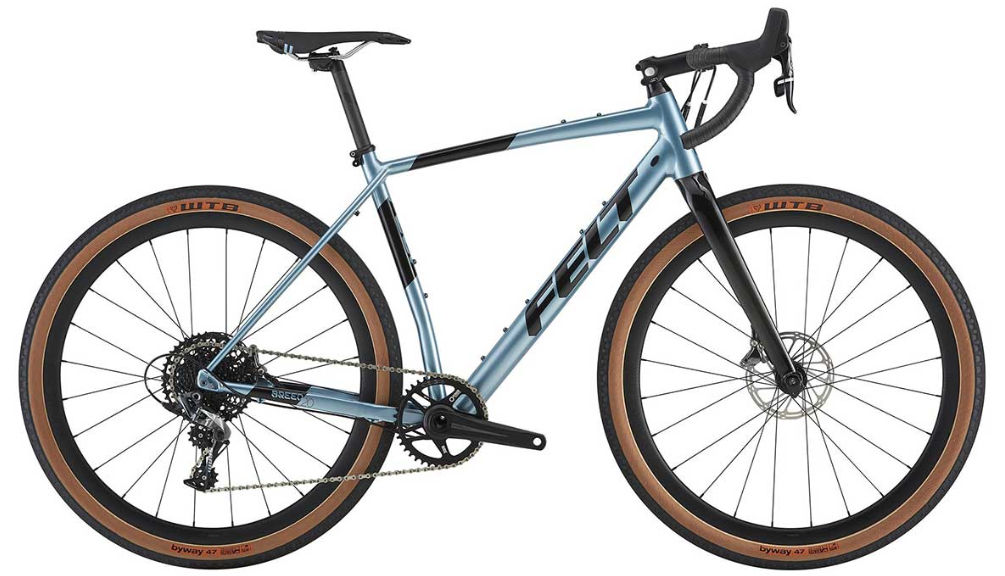

2019 Felt Breed geometry
Full frame geometry for the 2019 Felt Breed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 544 | 374 | 74 | 70 | 130 | 530 | 440 | 687 | 72 | 603 | 420 | 1013 | 50 |
| 51 | 561 | 379 | 74 | 70.5 | 135 | 540 | 470 | 708 | 72 | 610 | 420 | 1019 | 50 |
| 54 | 575 | 385 | 74 | 70.5 | 150 | 555 | 500 | 737 | 72 | 620 | 420 | 1030 | 50 |
| 56 | 591 | 389 | 73 | 71 | 165 | 570 | 520 | 757 | 72 | 625 | 420 | 1035 | 50 |
| 58 | 607 | 394 | 73 | 71.5 | 180 | 585 | 540 | 777 | 72 | 629 | 420 | 1039 | 50 |
| 61 | 626 | 397 | 72 | 71.5 | 200 | 600 | 570 | 805 | 72 | 639 | 420 | 1048 | 50 |
All measurements in millimetres unless marked (°) for angles.
