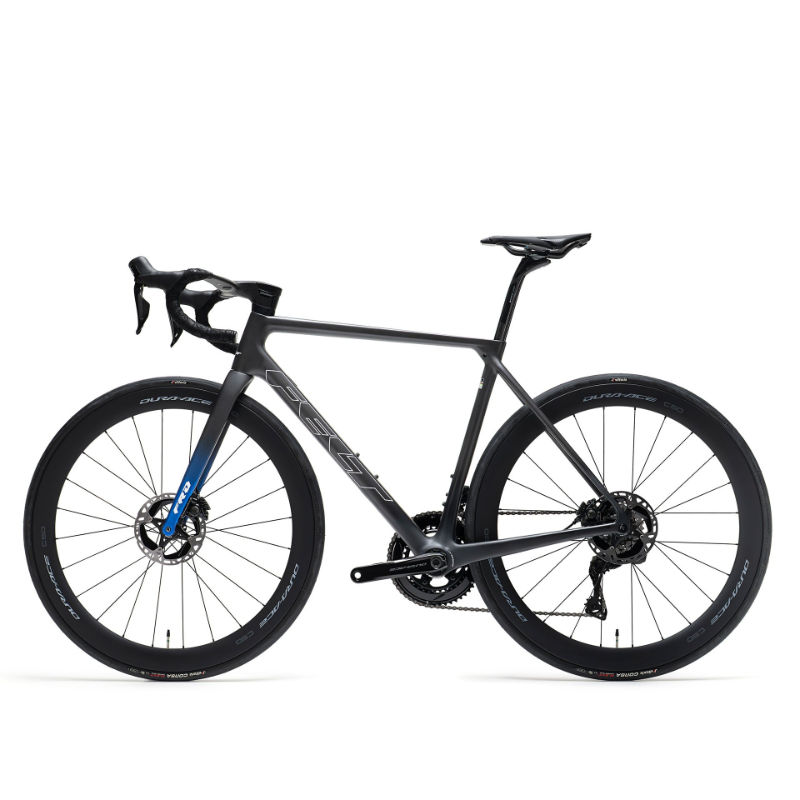

2026 Felt FR geometry
Full frame geometry for the 2026 Felt FR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 496.2 | 364.6 | 75.3 | 70.5 | 90 | 494.8 | 405 | 704 | 74 | 406 | 967.4 | 51 |
| 48 | 509.2 | 370.8 | 74.5 | 71.5 | 100 | 512 | 426 | 720.6 | 74 | 406 | 969.4 | 51 |
| 51 | 526.6 | 375.2 | 74 | 72.4 | 115 | 526.2 | 467 | 750 | 74 | 406 | 971.4 | 51 |
| 54 | 546.2 | 384.8 | 73.5 | 72.6 | 135 | 546.6 | 507 | 782 | 72 | 408 | 982.1 | 45 |
| 56 | 567.3 | 390 | 73.5 | 73.2 | 155 | 558.1 | 527 | 802 | 72 | 408 | 988.2 | 45 |
| 58 | 590.5 | 404.2 | 73.3 | 73.8 | 177 | 581.4 | 558 | 827.9 | 72 | 410 | 1005.3 | 45 |
| 61 | 617.4 | 411.5 | 73 | 73.8 | 205 | 600.3 | 594.6 | 860.8 | 72 | 410 | 1020.4 | 45 |
All measurements in millimetres unless marked (°) for angles.
