2021 Felt · G

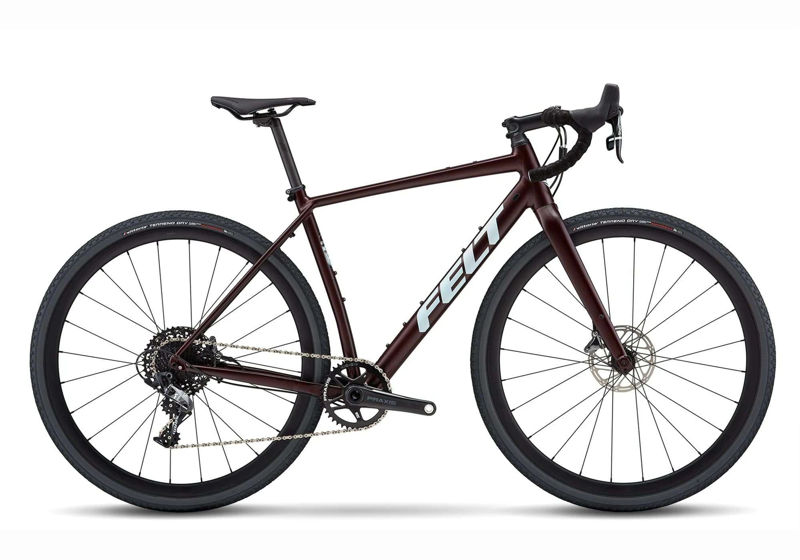

2021 Felt Breed geometry
Full frame geometry for the 2021 Felt Breed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS 47cm | 544 | 374 | 74 | 70 | 120 | 530 | 72 | 603 | 1013 | 50 |
| S 51cm | 561 | 380 | 74 | 70.5 | 135 | 540 | 72 | 610 | 1019 | 50 |
| M 54cm | 575 | 385 | 74 | 70.5 | 150 | 555 | 72 | 620 | 1030 | 50 |
| L 56cm | 591 | 389 | 73 | 71 | 165 | 570 | 72 | 625 | 1035 | 50 |
| XL 58cm | 607 | 393 | 73 | 71.5 | 180 | 585 | 72 | 629 | 1039 | 50 |
| XXL 61cm | 626 | 397 | 72 | 71.5 | 200 | 600 | 72 | 639 | 1048 | 50 |
All measurements in millimetres unless marked (°) for angles.
