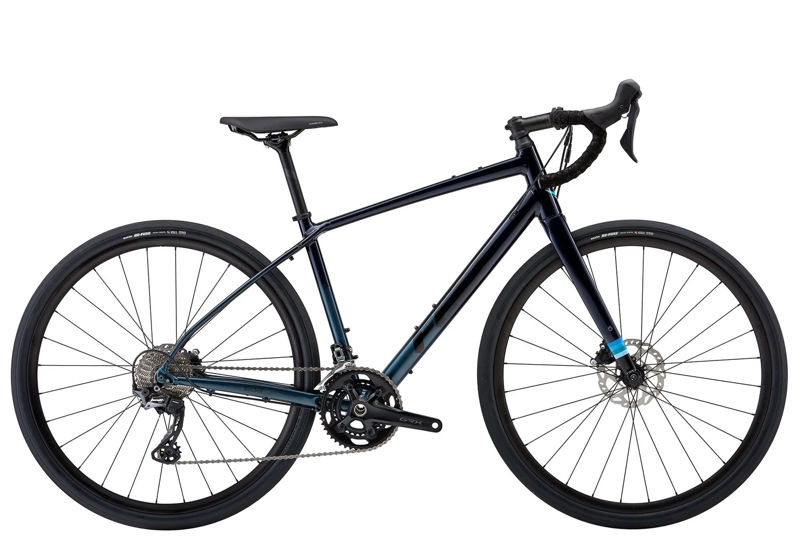

2021 Felt Broam geometry
Full frame geometry for the 2021 Felt Broam, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 47cm | 551 | 372 | 74 | 70.5 | 125 | 530 | 410 | 688 | 72 | 599 | 1039 | 50 |
| S 51cm | 570 | 371 | 74 | 70.5 | 145 | 535 | 435 | 713 | 72 | 605 | 1045 | 50 |
| M 54cm | 591 | 380 | 74 | 71 | 165 | 555 | 460 | 720 | 72 | 616 | 1056 | 50 |
| L 56cm | 605 | 385 | 73 | 71 | 180 | 570 | 485 | 762 | 72 | 626 | 1066 | 50 |
| XL 58cm | 624 | 389 | 73 | 71 | 200 | 580 | 515 | 790 | 72 | 636 | 1076 | 50 |
| XXL 61cm | 643 | 399 | 73 | 71 | 220 | 595 | 545 | 818 | 72 | 652 | 1092 | 50 |
All measurements in millimetres unless marked (°) for angles.
