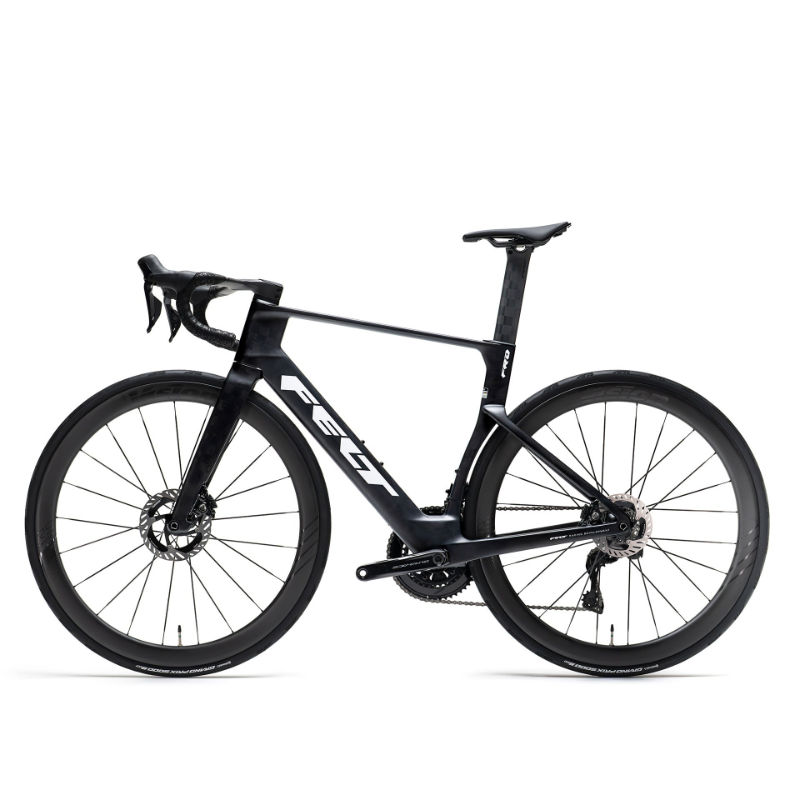

2026 Felt Nexar geometry
Full frame geometry for the 2026 Felt Nexar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 504 | 355 | 75.5 | 70.5 | 90 | 485 | 425 | 723 | 75 | 408 | 960 | 50 | 67 |
| 48 | 522 | 365 | 75 | 71.5 | 105 | 505 | 445 | 735 | 75 | 408 | 968 | 50 | 61 |
| 51 | 537 | 370 | 75 | 72.5 | 120 | 524 | 465 | 755 | 72.5 | 408 | 970 | 50 | 55 |
| 54 | 558 | 380 | 74.5 | 73 | 140 | 540 | 490 | 778 | 72.5 | 408 | 976 | 44 | 58 |
| 56 | 576 | 390 | 74 | 73.5 | 160 | 561 | 515 | 802 | 70 | 408 | 988 | 44 | 55 |
| 58 | 600 | 395 | 74 | 73.5 | 185 | 578 | 540 | 826 | 70 | 408 | 1000 | 44 | 55 |
| 61 | 631 | 405 | 73.5 | 74 | 215 | 604 | 570 | 855 | 70 | 408 | 1013 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
