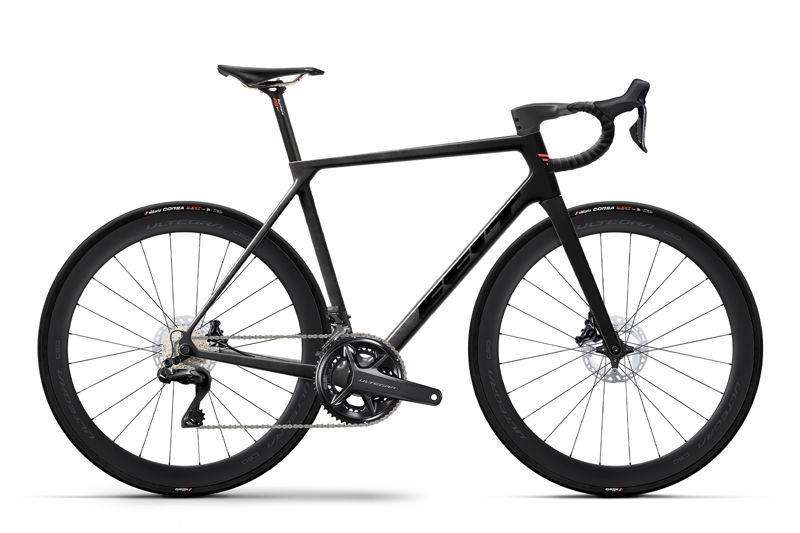

2024 Felt FR Advance geometry
Full frame geometry for the 2024 Felt FR Advance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 496.2 | 364.6 | 70.5 | 90 | 494.8 | 753 | 704 | 74 | 406 | 51 |
| 48 | 509.2 | 370.8 | 71.5 | 100 | 512 | 745 | 720.6 | 74 | 406 | 51 |
| 51 | 526.6 | 375.2 | 72.4 | 115 | 526.2 | 740 | 750 | 74 | 406 | 51 |
| 54 | 546.2 | 384.8 | 72.6 | 135 | 546.6 | 735 | 782 | 72 | 408 | 45 |
| 56 | 567.3 | 390 | 73.2 | 155 | 558.1 | 735 | 802 | 72 | 408 | 45 |
| 58 | 590.5 | 404.2 | 73.8 | 177 | 581.4 | 733 | 827.9 | 72 | 410 | 45 |
| 61 | 617.4 | 411.5 | 73.8 | 205 | 600.3 | 730 | 860.8 | 72 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
