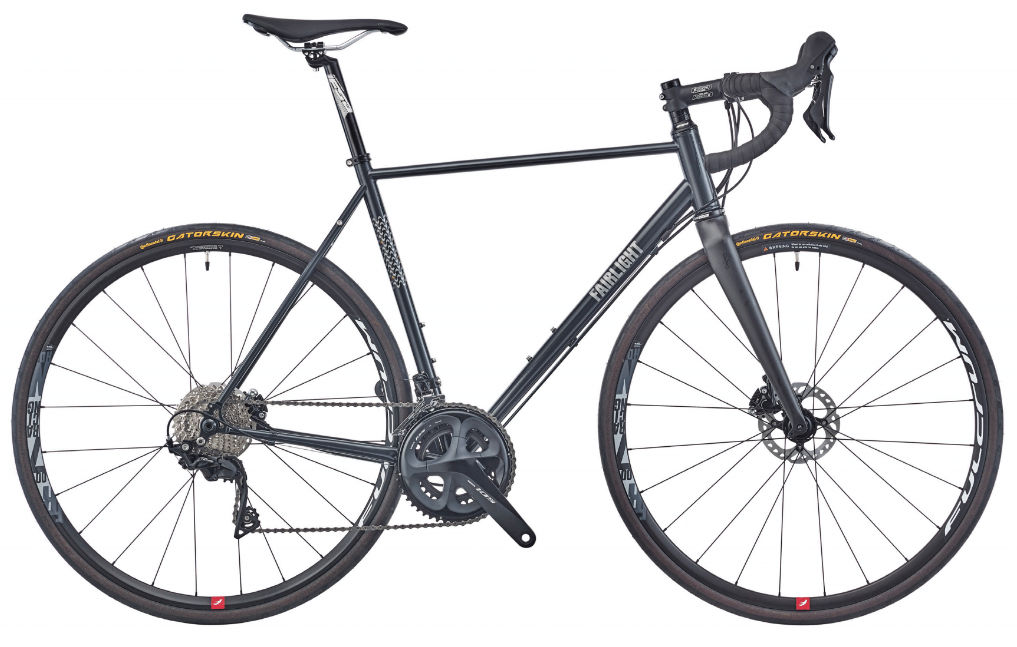

2019 Fairlight Strael 2.0 geometry
Full frame geometry for the 2019 Fairlight Strael 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51R | 530 | 383 | 74 | 72 | 110 | 536 | 510 | 795 | 68 | 585 | 418 | 993 | 45 | 63 |
| 54R | 551 | 386 | 73.5 | 72.5 | 130 | 550 | 532 | 818 | 68 | 590 | 418 | 998 | 45 | 60 |
| 51T | 557 | 370 | 74 | 71.5 | 140 | 531 | 514 | 811 | 68 | 585 | 418 | 993 | 45 | 66 |
| 56R | 564 | 394 | 73 | 73.5 | 140 | 566 | 545 | 832 | 68 | 592 | 418 | 1000 | 45 | 54 |
| 54T | 579 | 378 | 74 | 72.5 | 160 | 545 | 536 | 833 | 68 | 590 | 418 | 999 | 45 | 60 |
| 58R | 583 | 402 | 73 | 73.5 | 160 | 580 | 564 | 852 | 68 | 605 | 418 | 1014 | 45 | 54 |
| 56T | 600 | 380 | 73.5 | 73 | 180 | 558 | 557 | 856 | 68 | 594 | 418 | 1002 | 45 | 57 |
| 61R | 602 | 410 | 73 | 73.5 | 180 | 594 | 583 | 871 | 68 | 619 | 418 | 1028 | 45 | 54 |
| 58T | 619 | 389 | 73.5 | 73 | 200 | 573 | 575 | 875 | 68 | 609 | 418 | 1017 | 45 | 57 |
| 61T | 639 | 405 | 73 | 73.5 | 220 | 594 | 592 | 895 | 68 | 630 | 418 | 1039 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
