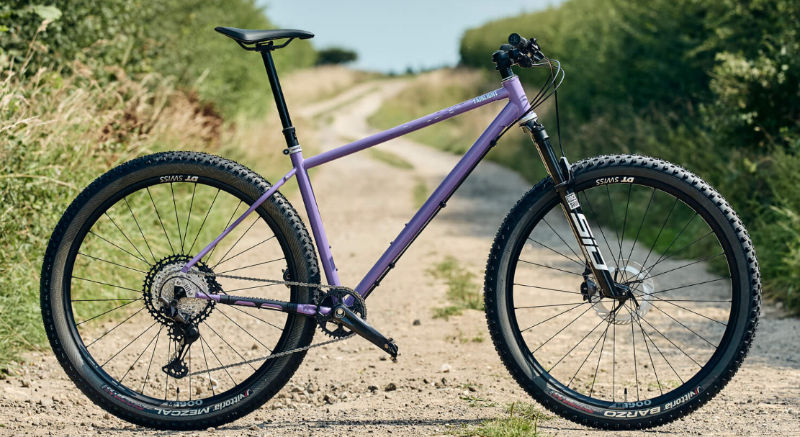

2025 Fairlight Holt 2.0 geometry
Full frame geometry for the 2025 Fairlight Holt 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 616 | 450 | 74.3 | 67 | 100 | 616 | 425 | 63 | 435 | 1163 | 44 |
| S | 616 | 425 | 74.3 | 67 | 100 | 591 | 385 | 63 | 435 | 1138 | 44 |
| L | 625 | 470 | 74.3 | 67 | 110 | 638 | 465 | 63 | 435 | 1187 | 44 |
| XL | 643 | 495 | 74.3 | 67 | 130 | 669 | 510 | 63 | 435 | 1219 | 44 |
All measurements in millimetres unless marked (°) for angles.
