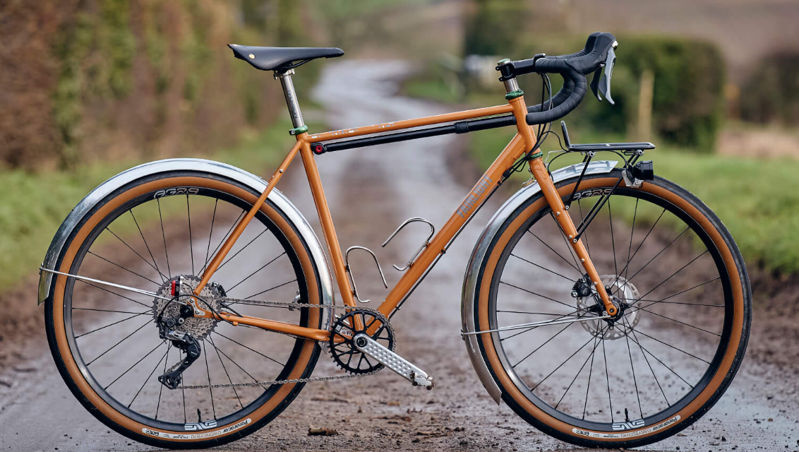

2023 Fairlight Faran 2.5 geometry
Full frame geometry for the 2023 Fairlight Faran 2.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51R | 540.2 | 379.9 | 74 | 71.5 | 93 | 535.9 | 515 | 765.5 | 77 | 603.1 | 430 | 1022.6 | 60 | 53.3 |
| 54R | 559.3 | 386.2 | 74 | 72 | 111 | 547.5 | 535 | 784.7 | 77 | 610.9 | 430 | 1029.7 | 60 | 50.1 |
| 51T | 566.8 | 371.1 | 74 | 71.5 | 121 | 534.7 | 518 | 780.2 | 77 | 603.2 | 430 | 1022.6 | 60 | 53.3 |
| 56R | 574.5 | 394.2 | 73.5 | 72 | 127 | 565 | 550 | 798.9 | 77 | 623.7 | 430 | 1042.4 | 60 | 50.1 |
| 54T | 590 | 378 | 74 | 72 | 143 | 548 | 540 | 802.3 | 77 | 613 | 430 | 1030.8 | 60 | 50.1 |
| 58R | 592.6 | 402.1 | 73 | 72.5 | 144 | 583.5 | 568 | 816.1 | 77 | 632.3 | 430 | 1051.2 | 60 | 47 |
| 56T | 609.7 | 382.5 | 73.5 | 72 | 164 | 563.7 | 560 | 821.3 | 77 | 623.4 | 430 | 1042.4 | 60 | 50.1 |
| 61R | 611.7 | 410.1 | 73 | 72.5 | 164 | 597.3 | 586 | 834.2 | 77 | 646.2 | 430 | 1064.4 | 60 | 47 |
| 58T | 629.8 | 390.1 | 73 | 72.5 | 183 | 582.8 | 580 | 840.4 | 77 | 632 | 430 | 1051.2 | 60 | 47 |
| 61T | 649.8 | 405 | 73.5 | 72.5 | 204 | 597.9 | 596 | 858.7 | 77 | 653.1 | 430 | 1072.1 | 60 | 47 |
All measurements in millimetres unless marked (°) for angles.
