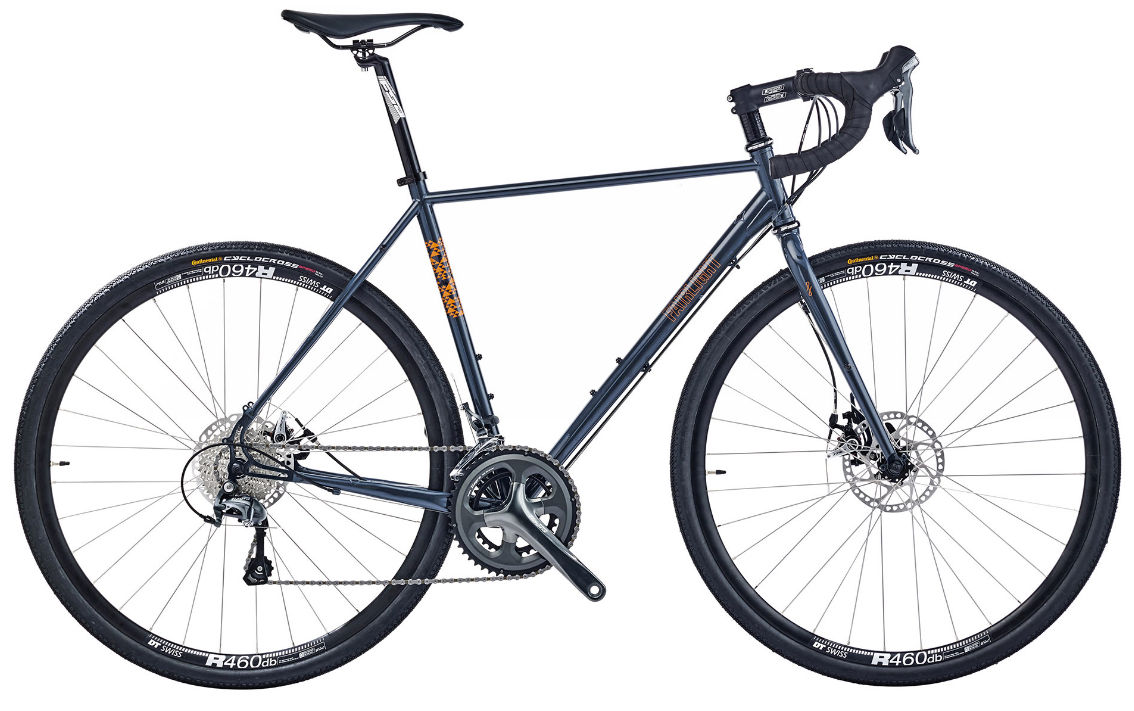

2017 Fairlight Faran geometry
Full frame geometry for the 2017 Fairlight Faran, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51R | 535 | 382 | 74 | 71.5 | 100 | 537 | 520 | 813 | 70 | 595 | 430 | 1015 | 50 | 63 |
| 54R | 559 | 388 | 74 | 72 | 121 | 549 | 543 | 837 | 70 | 598 | 430 | 1018 | 45 | 65 |
| 51T | 561 | 368 | 74 | 71 | 130 | 531 | 523 | 828 | 70 | 595 | 430 | 1015 | 50 | 66 |
| 56R | 571 | 395 | 73.5 | 72 | 134 | 565 | 556 | 851 | 70 | 609 | 430 | 1029 | 45 | 65 |
| 54T | 586 | 374 | 74 | 71.5 | 152 | 543 | 547 | 853 | 70 | 598 | 430 | 1018 | 45 | 68 |
| 58R | 587 | 400 | 73 | 72 | 151 | 580 | 572 | 868 | 70 | 619 | 430 | 1040 | 45 | 65 |
| 56T | 605 | 380 | 73.5 | 72 | 171 | 560 | 567 | 873 | 70 | 605 | 430 | 1026 | 45 | 65 |
| 61R | 605 | 408 | 73 | 72 | 170 | 594 | 591 | 887 | 70 | 634 | 430 | 1054 | 45 | 65 |
| 58T | 624 | 385 | 73 | 72 | 191 | 576 | 586 | 894 | 70 | 616 | 430 | 1036 | 45 | 65 |
| 61T | 645 | 396 | 73 | 72 | 212 | 594 | 605 | 914 | 70 | 634 | 430 | 1055 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
