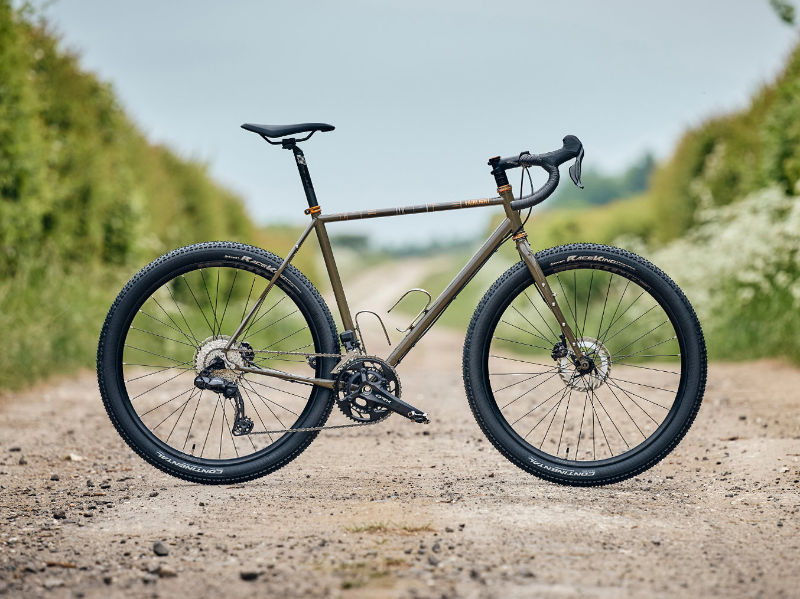

2026 Fairlight Faran 3.0 geometry
Full frame geometry for the 2026 Fairlight Faran 3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54R | 558 | 388 | 74 | 72 | 110 | 549 | 531 | 789 | 77 | 612 | 432 | 1032 | 60 |
| 51T | 570 | 370 | 74 | 71.5 | 124 | 535 | 518 | 786 | 77 | 603 | 432 | 1023 | 60 |
| 56R | 576 | 396 | 73.5 | 72 | 131 | 567 | 549 | 808 | 75 | 626 | 432 | 1047 | 60 |
| 54T | 590 | 378 | 74 | 72 | 143 | 548 | 537 | 805 | 77 | 613 | 432 | 1033 | 60 |
| 58R | 594 | 404 | 73.5 | 72.5 | 148 | 580 | 567 | 825 | 75 | 635 | 432 | 1056 | 60 |
| 56T | 611 | 386 | 73.5 | 72 | 167 | 567 | 557 | 827 | 75 | 627 | 432 | 1048 | 60 |
| 58T | 630 | 394 | 73.5 | 72.5 | 185 | 581 | 575 | 845 | 75 | 636 | 432 | 1057 | 60 |
| 61T | 650 | 402 | 73.5 | 72.5 | 206 | 595 | 594 | 864 | 75 | 651 | 432 | 1072 | 60 |
All measurements in millimetres unless marked (°) for angles.
