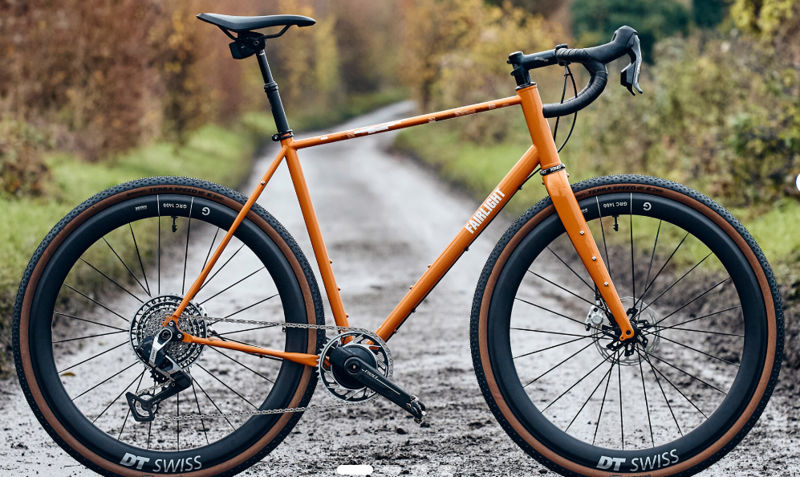

2024 Fairlight Secan 3.0 geometry
Full frame geometry for the 2024 Fairlight Secan 3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51R | 540 | 380 | 74 | 70 | 104 | 537 | 490 | 758 | 77 | 607 | 432 | 1027 | 50 | 73.6 |
| 54R | 558 | 388 | 74 | 70.5 | 121 | 550 | 510 | 777 | 77 | 616 | 432 | 1036 | 50 | 70.4 |
| 51T | 570 | 370 | 74 | 70 | 136 | 535 | 495 | 776 | 77 | 608 | 432 | 1028 | 50 | 73.6 |
| 56R | 576 | 396 | 73.5 | 71.3 | 139 | 568 | 520 | 792 | 75 | 623 | 432 | 1044 | 50 | 65.5 |
| 54T | 590 | 378 | 74 | 70.5 | 155 | 549 | 515 | 795 | 77 | 618 | 432 | 1038 | 50 | 70.4 |
| 58R | 594 | 404 | 73.5 | 71.8 | 156 | 581 | 540 | 811 | 75 | 632 | 432 | 1053 | 50 | 62.3 |
| 56T | 610 | 386 | 73.5 | 71.3 | 175 | 568 | 535 | 816 | 75 | 625 | 432 | 1046 | 50 | 65.5 |
| 61R | 612 | 412 | 73.5 | 71.8 | 175 | 594 | 560 | 830 | 75 | 646 | 432 | 1067 | 50 | 62.3 |
| 58T | 630 | 394 | 73.5 | 71.8 | 194 | 581 | 555 | 836 | 75 | 634 | 432 | 1055 | 50 | 62.3 |
| 61T | 650 | 402 | 73.5 | 71.8 | 215 | 595 | 575 | 856 | 75 | 649 | 432 | 1070 | 50 | 62.3 |
All measurements in millimetres unless marked (°) for angles.
