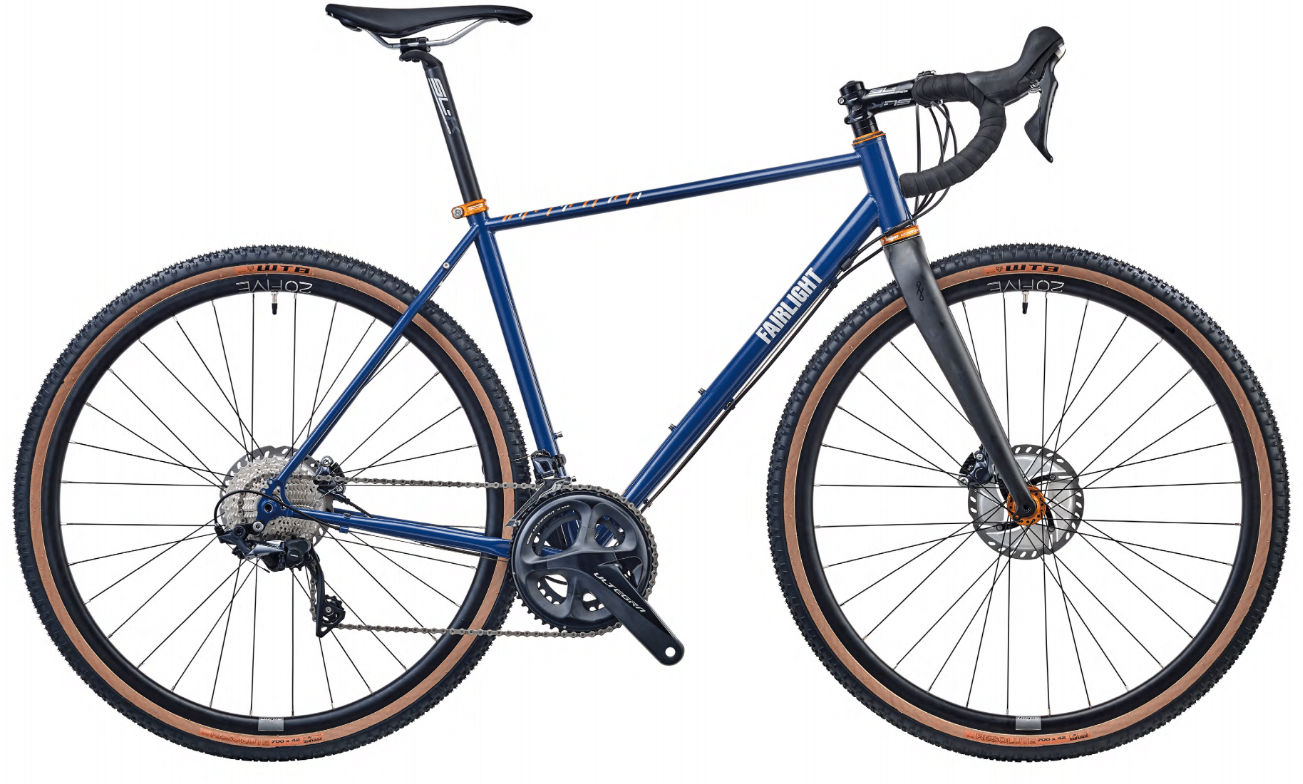

2019 Fairlight Secan geometry
Full frame geometry for the 2019 Fairlight Secan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51R | 538 | 380 | 74 | 70.5 | 100 | 536 | 490 | 781 | 77 | 603 | 430 | 1021 | 50 | 69 |
| 54R | 559 | 386 | 73.5 | 71 | 120 | 553 | 510 | 802 | 77 | 611 | 430 | 1029 | 50 | 68 |
| 51T | 567 | 371 | 74 | 70.5 | 130 | 535 | 495 | 798 | 77 | 604 | 430 | 1022 | 50 | 69 |
| 56R | 572 | 397 | 73.5 | 72 | 130 | 567 | 520 | 814 | 77 | 616 | 430 | 1034 | 50 | 61 |
| 54T | 589 | 383 | 74 | 71.5 | 150 | 553 | 515 | 819 | 77 | 611 | 430 | 1030 | 50 | 64 |
| 58R | 593 | 402 | 73 | 72.5 | 150 | 584 | 540 | 836 | 77 | 622 | 430 | 1041 | 50 | 58 |
| 56T | 610 | 385 | 73.5 | 72 | 170 | 566 | 535 | 841 | 77 | 616 | 430 | 1034 | 50 | 61 |
| 61R | 612 | 410 | 73 | 72.5 | 170 | 597 | 560 | 856 | 77 | 635 | 430 | 1054 | 50 | 58 |
| 58T | 631 | 394 | 73.5 | 72.5 | 190 | 581 | 555 | 862 | 77 | 626 | 430 | 1045 | 50 | 58 |
| 61T | 650 | 405 | 73.5 | 72.5 | 210 | 598 | 575 | 882 | 77 | 644 | 430 | 1062 | 50 | 56 |
All measurements in millimetres unless marked (°) for angles.
