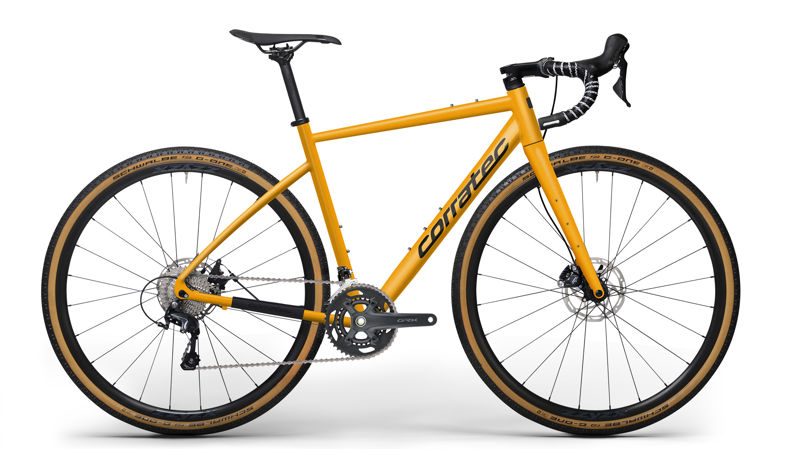

2002 Corratec Allroad T Series geometry
Full frame geometry for the 2002 Corratec Allroad T Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 46 | 557 | 382 | 74 | 72 | 115 | 547 | 460 | 1042 |
| 49 | 573 | 387 | 74 | 73 | 130 | 557 | 460 | 1048 |
| 52 | 588 | 392 | 74 | 73 | 145 | 566 | 460 | 1057 |
| 55 | 603 | 397 | 74 | 73 | 161 | 576 | 460 | 1067 |
| 58 | 620 | 402 | 74 | 73 | 178 | 585 | 460 | 1077 |
| 61 | 634 | 407 | 74 | 73 | 194 | 595 | 460 | 1087 |
All measurements in millimetres unless marked (°) for angles.
