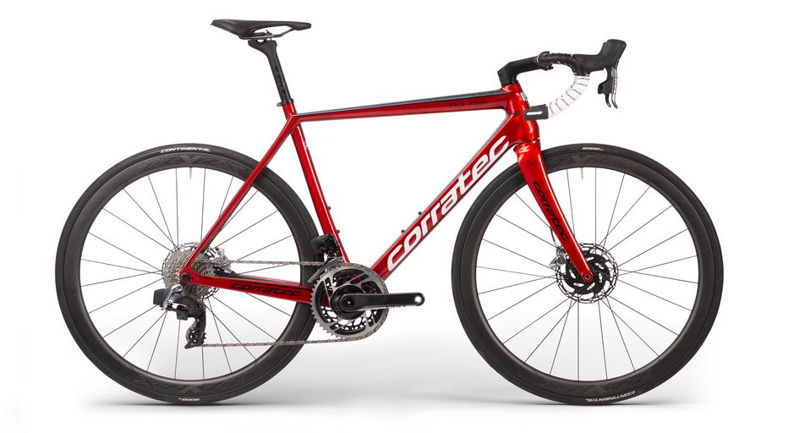

2020 Corratec CCT EVO geometry
Full frame geometry for the 2020 Corratec CCT EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 46 | 518 | 373 | 75 | 71 | 119 | 516 | 407 | 974 |
| 48 | 534 | 381 | 74 | 73 | 130 | 534 | 407 | 973 |
| 51 | 550 | 386 | 74 | 73 | 144 | 551 | 407 | 978 |
| 54 | 558 | 399 | 73 | 73 | 153 | 569 | 407 | 991 |
| 57 | 575 | 407 | 73 | 73 | 170 | 588 | 407 | 1004 |
| 60 | 595 | 418 | 73 | 73 | 192 | 602 | 407 | 1021 |
All measurements in millimetres unless marked (°) for angles.
