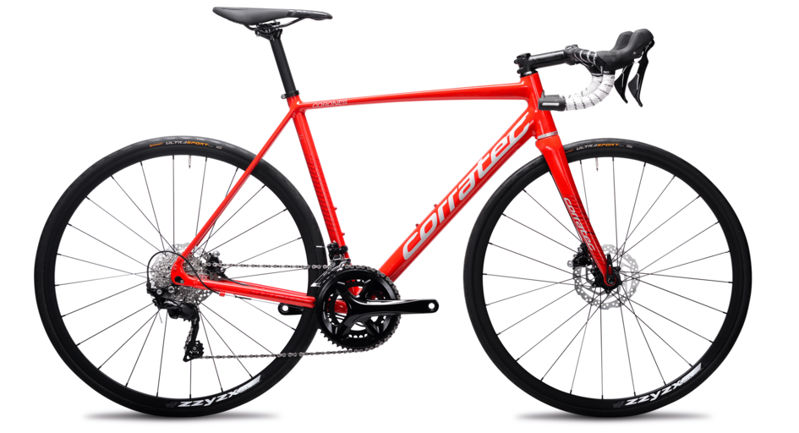

2020 Corratec Corones Expert Disc geometry
Full frame geometry for the 2020 Corratec Corones Expert Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 46 | 520 | 373 | 75 | 71 | 120 | 517 | 415 | 974 |
| 48 | 534 | 381 | 74 | 73 | 130 | 534 | 415 | 982 |
| 51 | 551 | 388 | 74 | 73 | 145 | 552 | 415 | 978 |
| 54 | 561 | 398 | 73 | 73 | 155 | 570 | 415 | 1000 |
| 57 | 575 | 408 | 73 | 73 | 170 | 586 | 415 | 1014 |
| 60 | 595 | 418 | 73 | 73 | 190 | 602 | 415 | 1030 |
All measurements in millimetres unless marked (°) for angles.
