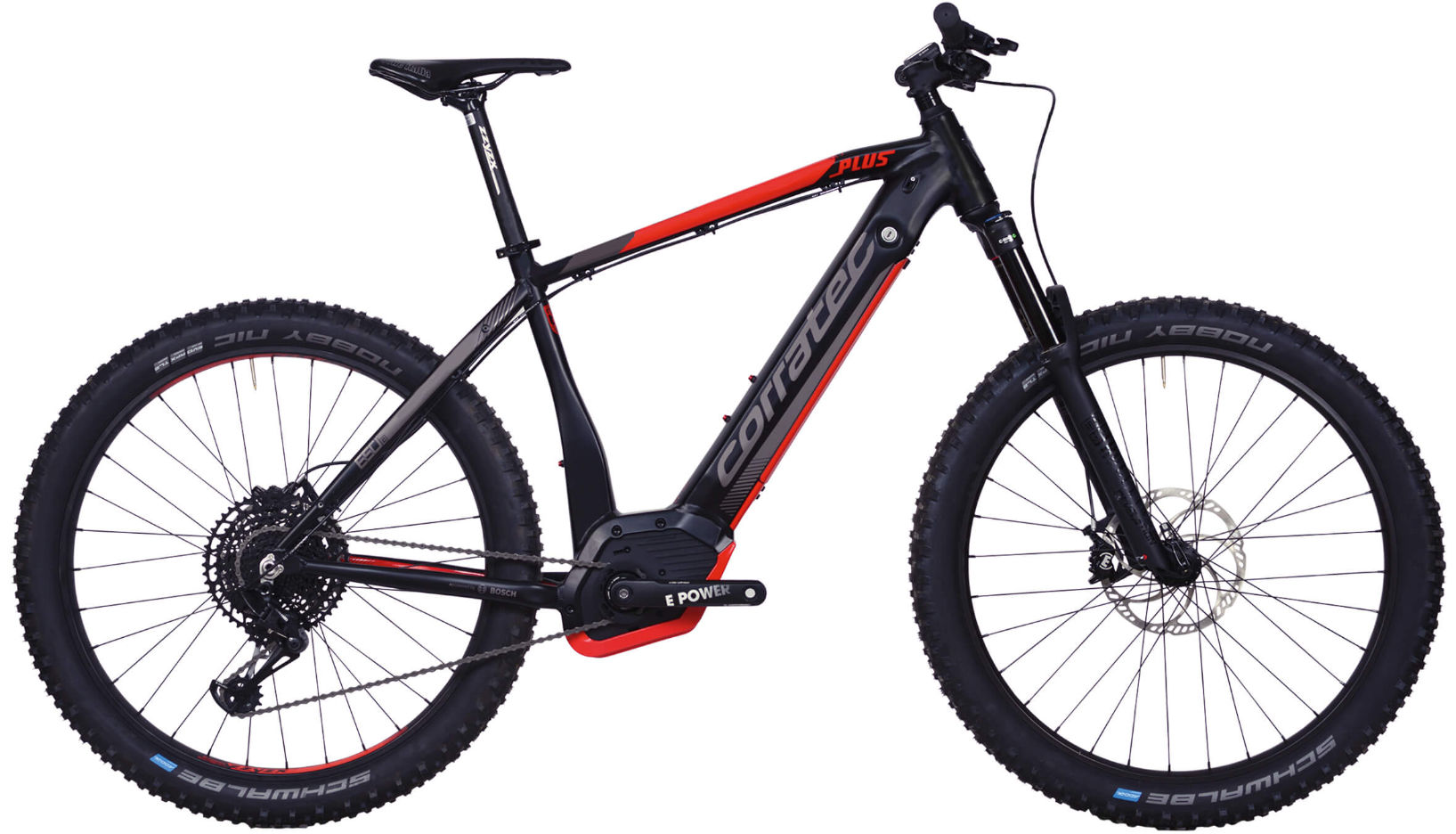

2019 Corratec E-Power X Vert geometry
Full frame geometry for the 2019 Corratec E-Power X Vert, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 39 | 634 | 399 | 73 | 66 | 130 | 593 | 475 | 1189 |
| 44 | 634 | 414 | 73 | 66 | 130 | 608 | 475 | 1204 |
| 49 | 634 | 429 | 73 | 66 | 130 | 623 | 475 | 1219 |
| 54 | 634 | 449 | 73 | 66 | 130 | 643 | 475 | 1239 |
All measurements in millimetres unless marked (°) for angles.
