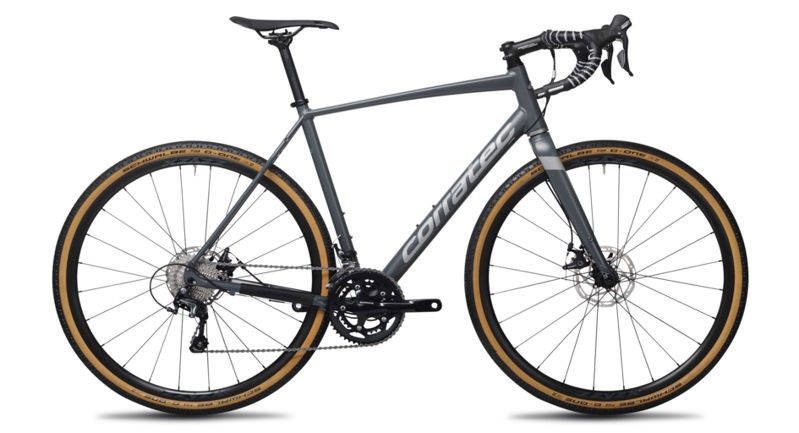

2020 Corratec Allroad A Series geometry
Full frame geometry for the 2020 Corratec Allroad A Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 46 | 550 | 360 | 75 | 69 | 125 | 512 | 430 | 1014 |
| 49 | 571 | 365 | 74 | 70 | 145 | 529 | 430 | 1022 |
| 52 | 588 | 371 | 74 | 70 | 160 | 545 | 430 | 1025 |
| 55 | 609 | 375 | 73 | 71 | 180 | 561 | 430 | 1032 |
| 58 | 626 | 380 | 73 | 71 | 195 | 578 | 430 | 1037 |
| 61 | 647 | 385 | 72 | 72 | 215 | 595 | 430 | 1041 |
All measurements in millimetres unless marked (°) for angles.
