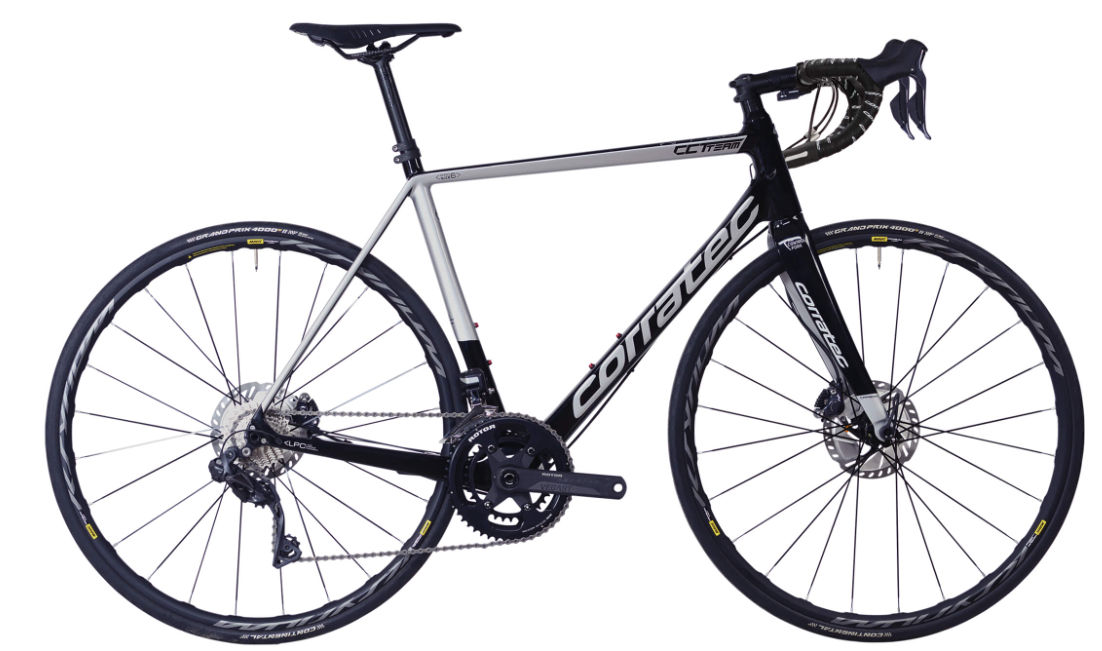

2019 Corratec CCT Pro Disc geometry
Full frame geometry for the 2019 Corratec CCT Pro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 46 | 520 | 375 | 75 | 71 | 121 | 519 | 407 | 976 |
| 48 | 536 | 383 | 74 | 73 | 133 | 537 | 407 | 976 |
| 51 | 554 | 391 | 74 | 73 | 149 | 555 | 407 | 982 |
| 54 | 564 | 398 | 73 | 73 | 160 | 570 | 407 | 992 |
| 57 | 586 | 408 | 73 | 73 | 182 | 589 | 407 | 1009 |
| 60 | 606 | 418 | 73 | 73 | 203 | 604 | 407 | 1109 |
All measurements in millimetres unless marked (°) for angles.
