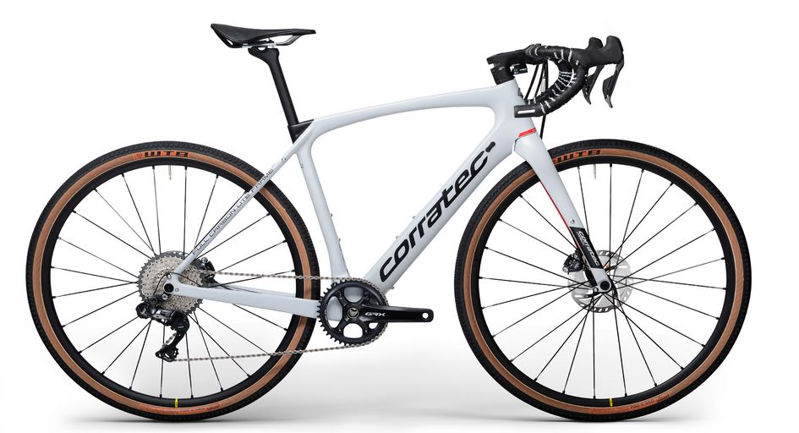

2020 Corratec Allroad C Series geometry
Full frame geometry for the 2020 Corratec Allroad C Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 47 | 523 | 356 | 75 | 70 | 95 | 495 | 440 | 1015 |
| 49 | 537 | 365 | 74 | 70 | 111 | 505 | 440 | 1014 |
| 52 | 561 | 365 | 74 | 70 | 136 | 526 | 440 | 1032 |
| 54 | 584 | 373 | 74 | 71 | 156 | 546 | 440 | 1038 |
| 56 | 602 | 385 | 73 | 71 | 176 | 570 | 440 | 1058 |
| 58 | 621 | 401 | 73 | 71 | 196 | 591 | 440 | 1079 |
All measurements in millimetres unless marked (°) for angles.
