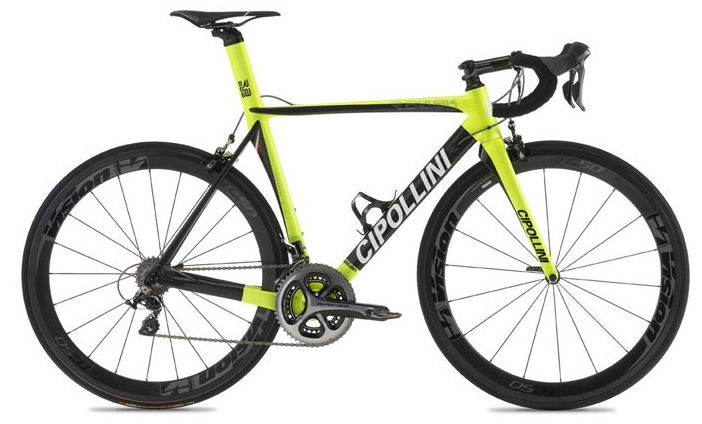

2012 Cipollini RB800 geometry
Full frame geometry for the 2012 Cipollini RB800, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 388 | 75.5 | 72 | 100 | 520 | 490 | 759 | 72 | 565 | 405 | 959 | 45 | 61 |
| S | 525 | 386 | 74 | 73 | 120 | 537 | 520 | 787 | 72 | 575 | 405 | 969 | 45 | 55 |
| M | 534 | 399 | 73.5 | 73 | 132 | 558 | 540 | 805 | 70 | 585 | 405 | 980 | 45 | 55 |
| L | 555 | 399 | 73 | 73.5 | 152 | 566 | 560 | 826 | 70 | 595 | 405 | 990 | 45 | 52 |
| XL | 571 | 407 | 73 | 73.5 | 170 | 582 | 578 | 846 | 68 | 605 | 407 | 1002 | 45 | 52 |
| XXL | 595 | 414 | 72.5 | 74 | 193 | 601 | 610 | 875 | 68 | 620 | 410 | 1021 | 45 | 49 |
All measurements in millimetres unless marked (°) for angles.
