2022 Cipollini · ERD

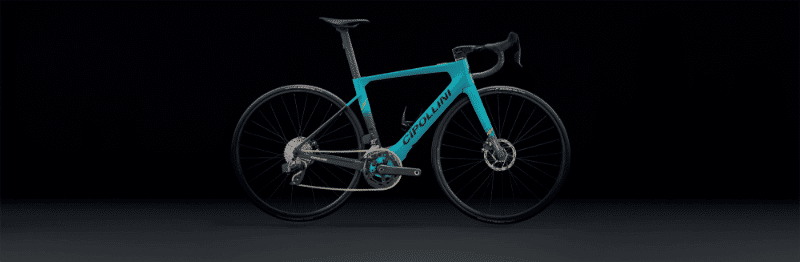

2022 Cipollini Flusso geometry
Full frame geometry for the 2022 Cipollini Flusso, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 517 | 369 | 74.4 | 71 | 122 | 515 | 537 | 72 | 574 | 420 | 45 |
| M | 537 | 381 | 73 | 72 | 135 | 535 | 560 | 72 | 584 | 420 | 45 |
| L | 551 | 392 | 73.5 | 72.5 | 150 | 555 | 575 | 69 | 595 | 420 | 45 |
| XL | 569 | 400 | 73 | 73.2 | 170 | 575 | 595 | 67 | 603 | 420 | 45 |
All measurements in millimetres unless marked (°) for angles.
