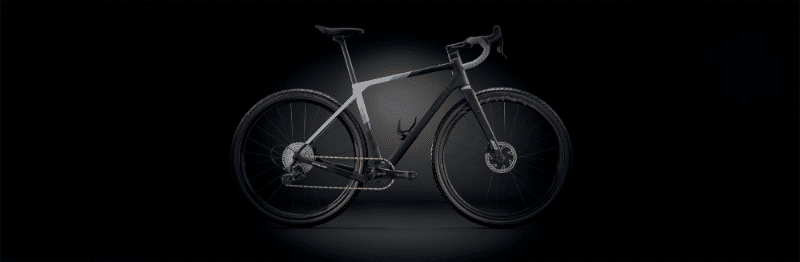

2023 Cipollini AGO geometry
Full frame geometry for the 2023 Cipollini AGO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 | 372 | 74.7 | 70.3 | 101 | 522 | 557 | 77 | 600 | 427 | 55 |
| S | 556 | 378 | 74 | 70.7 | 122 | 538 | 580 | 77 | 613 | 427 | 55 |
| M | 572 | 386 | 73.7 | 71 | 136 | 554 | 596 | 77 | 620 | 427 | 55 |
| L | 594 | 395 | 73.4 | 71.2 | 158 | 574 | 620 | 77 | 633 | 427 | 55 |
| XL | 621 | 403 | 73 | 71.5 | 185 | 593 | — | 77 | 647 | 427 | 55 |
All measurements in millimetres unless marked (°) for angles.
