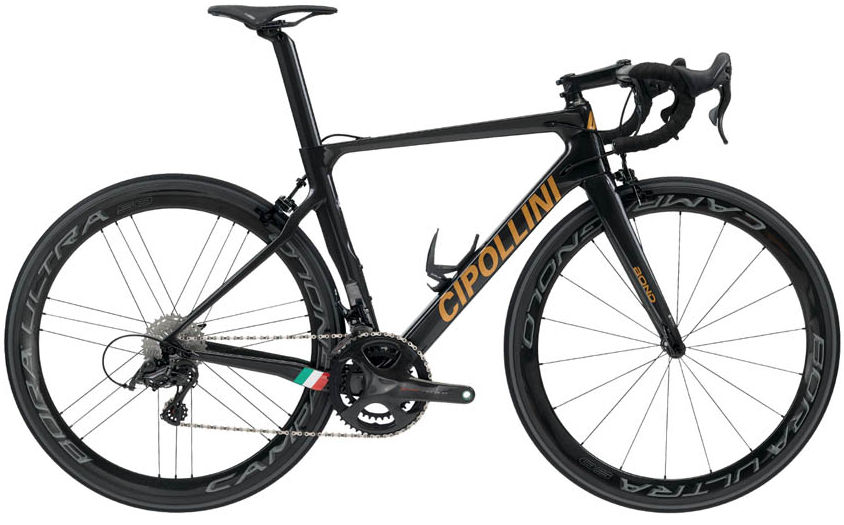

2019 Cipollini Bond2 geometry
Full frame geometry for the 2019 Cipollini Bond2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 368 | 74.6 | 70.8 | 108 | 507 | 430 | 724 | 71 | 570 | 410 | 969 | 45 |
| S | 524 | 377 | 74.3 | 71.4 | 124 | 524 | 450 | 743 | 71 | 581 | 410 | 980 | 45 |
| M | 538 | 382 | 73.8 | 72.2 | 136 | 540 | 480 | 766 | 71 | 584 | 410 | 983 | 45 |
| L | 560 | 397 | 73.3 | 72.7 | 159 | 565 | 515 | 807 | 60 | 601 | 410 | 1003 | 45 |
| XL | 584 | 403 | 72.9 | 73.3 | 183 | 583 | 550 | 830 | 68 | 609 | 410 | 1009 | 45 |
All measurements in millimetres unless marked (°) for angles.
