2023 Cipollini · RD

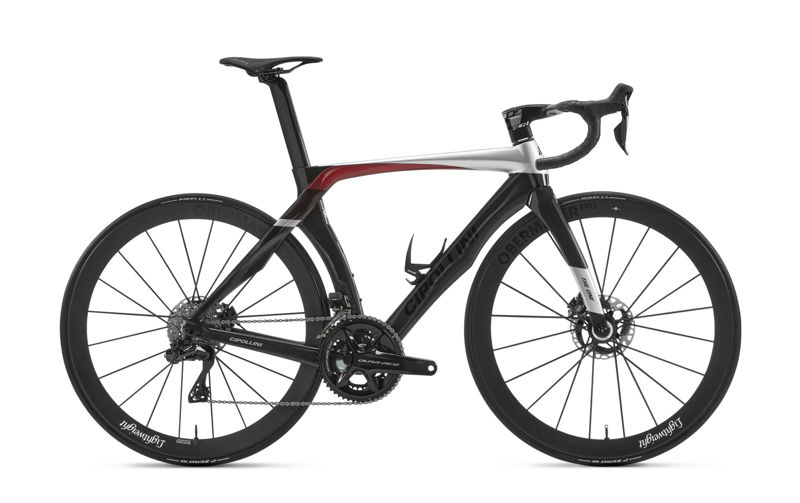

2023 Cipollini The One geometry
Full frame geometry for the 2023 Cipollini The One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 493 | 375 | 75 | 71 | 93 | 508 | 430 | 71 | 573 | 410 | 45 |
| XS | 500 | 383 | 74.8 | 71.5 | 99 | 520 | 450 | 71 | 579 | 410 | 45 |
| S | 509 | 391 | 74.5 | 72 | 106 | 532 | 430 | 71 | 584 | 410 | 45 |
| M | 519 | 396 | 74 | 72.5 | 115 | 545 | 450 | 71 | 589 | 410 | 45 |
| L | 538 | 402 | 73.8 | 73 | 134 | 559 | 480 | 70 | 597 | 410 | 45 |
| XL | 552 | 411 | 73.5 | 73.3 | 149 | 575 | 515 | 69 | 608 | 410 | 45 |
| XXL | 569 | 417 | 73 | 73.5 | 169 | 591 | 550 | 67 | 616 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
