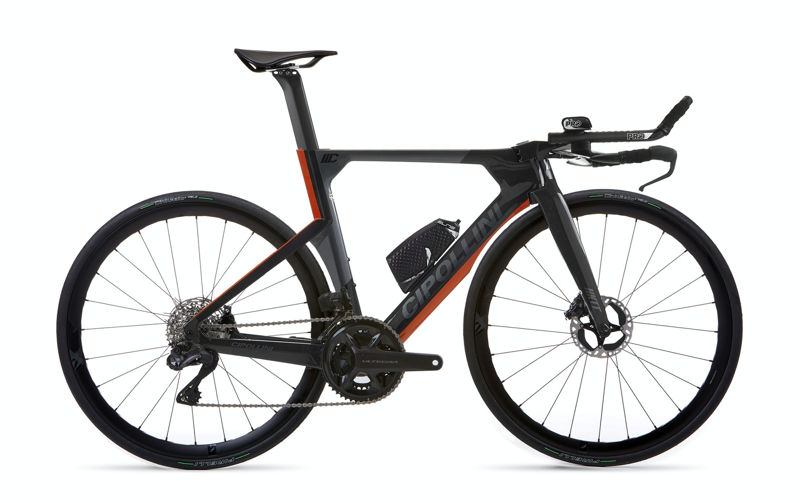

2020 Cipollini NKTT geometry
Full frame geometry for the 2020 Cipollini NKTT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 437 | 388 | 76.2 | 71 | 72 | 504 | 484 | 68 | 579 | 407 | 45 |
| M | 481 | 404 | 76.2 | 72.5 | 76 | 522 | 518 | 68 | 585 | 407 | 45 |
| L | 498 | 419 | 76.2 | 73.5 | 89 | 541 | 536 | 68 | 597 | 407 | 45 |
| XL | 516 | 434 | 76.2 | 73.5 | 109 | 564 | 558 | 68 | 618 | 407 | 45 |
All measurements in millimetres unless marked (°) for angles.
