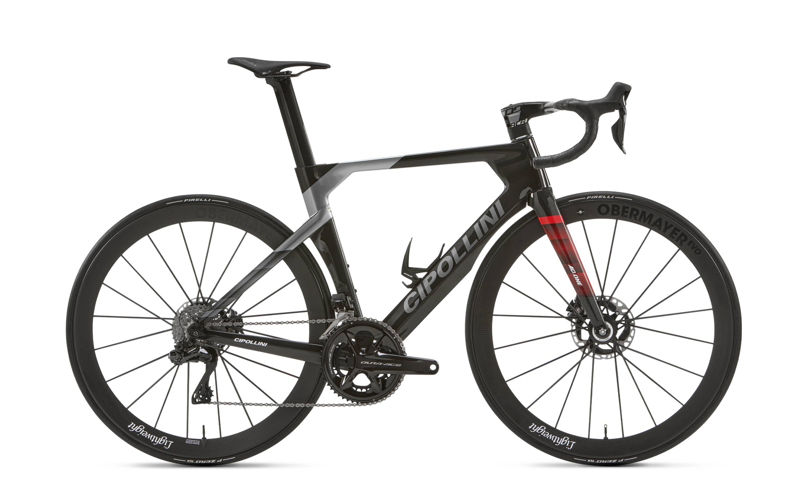

2023 Cipollini AD.One geometry
Full frame geometry for the 2023 Cipollini AD.One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 370 | 74.6 | 71.1 | 105 | 510 | 454 | 72 | 570 | 410 | 45 |
| S | 522 | 379 | 74.2 | 72 | 116 | 527 | 473 | 72 | 577 | 410 | 45 |
| M | 533 | 390 | 73.8 | 72.5 | 126 | 545 | 494 | 72 | 587 | 410 | 45 |
| L | 546 | 398 | 73.5 | 72.8 | 141 | 560 | 512 | 70 | 597 | 410 | 45 |
| XL | 564 | 406 | 73.3 | 73.4 | 159 | 575 | 528 | 68 | 604 | 410 | 45 |
| XXL | 583 | 410 | 72.8 | 73.7 | 179 | 590 | 545 | 68 | 611 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
