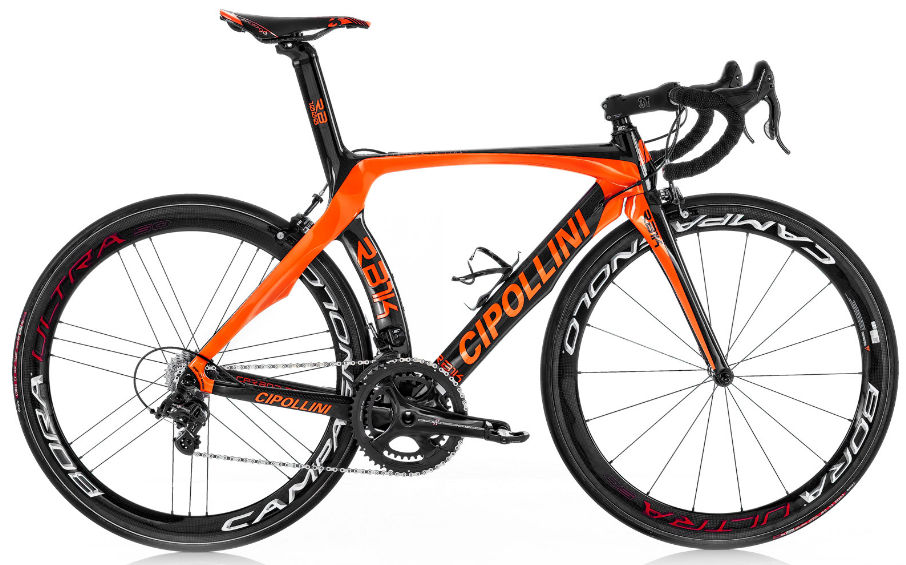

2012 Cipollini RB1K geometry
Full frame geometry for the 2012 Cipollini RB1K, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 497 | 375 | 75.5 | 71.5 | 95 | 510 | 435 | 727 | 72 | 570 | 405 | 964 | 45 | 64 |
| XS | 500 | 389 | 75.5 | 72 | 97 | 525 | 465 | 744 | 72 | 580 | 405 | 974 | 45 | 61 |
| S | 504 | 393 | 74.5 | 72.5 | 100 | 535 | 480 | 755 | 72 | 585 | 405 | 979 | 45 | 58 |
| M | 520 | 398 | 74.5 | 73 | 115 | 545 | 500 | 774 | 72 | 585 | 405 | 979 | 45 | 55 |
| L | 529 | 401 | 73.5 | 73 | 127 | 560 | 515 | 789 | 70 | 590 | 405 | 985 | 45 | 55 |
| XL | 549 | 410 | 73.5 | 73.5 | 147 | 575 | 535 | 811 | 69 | 600 | 410 | 1000 | 45 | 52 |
| XXL | 564 | 420 | 73 | 73.5 | 163 | 590 | 550 | 828 | 68 | 615 | 410 | 1016 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
