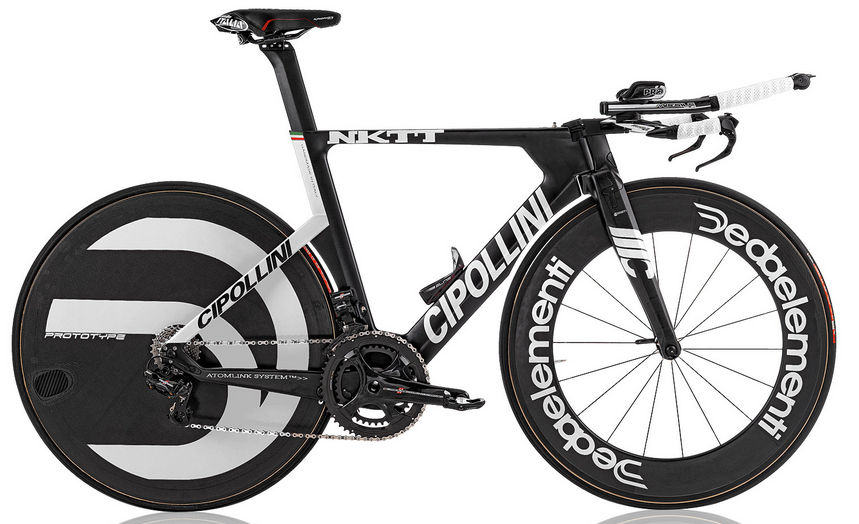

2015 Cipollini NKTT geometry
Full frame geometry for the 2015 Cipollini NKTT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 498 | 378 | 75.5 | 71 | 60 | 507 | 480 | 755 | 68 | 579 | 405 | 45 |
| M | 509 | 396 | 75 | 72.5 | 68 | 532 | 520 | 782 | 68 | 585 | 405 | 45 |
| L | 527 | 411 | 75 | 73.5 | 82 | 552 | 540 | 801 | 68 | 597 | 405 | 45 |
| XL | 545 | 427 | 75 | 73.5 | 100 | 572 | 560 | 821 | 68 | 618 | 405 | 45 |
All measurements in millimetres unless marked (°) for angles.
