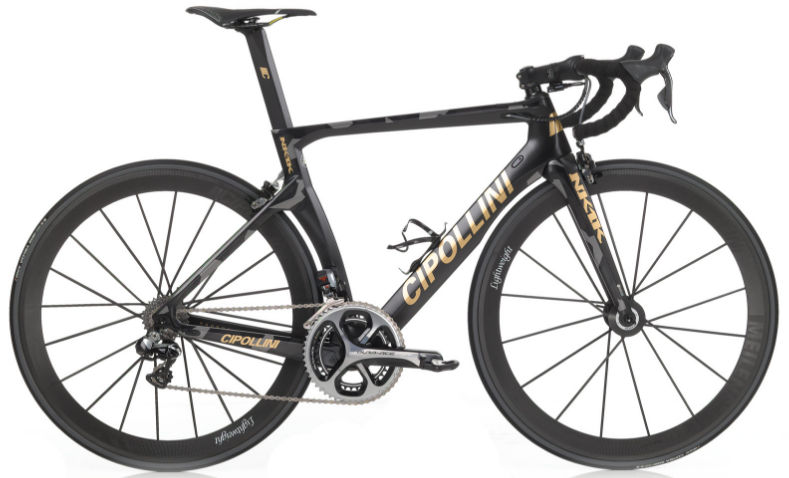

2016 Cipollini NK1K geometry

Name: 2016 Cipollini NK1K
Brand: Cipollini

Full frame geometry for the 2016 Cipollini NK1K, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XXS	503	366	74.8	70.5	105	504	435	737	71	570	405	965	45
XS	512	371	74.2	71	112	515	455	752	71	574	405	968	45
S	527	379	74	72	125	530	475	771	71	578	405	972	45
M	542	384	73.5	72.5	138	545	495	789	71	584	405	978	45
L	556	390	73	73	152	560	515	808	70	590	406	986	45
XL	570	398	72.8	72.8	167	575	535	827	69	598	408	997	45
XXL	581	406	72.5	73.2	181	590	555	846	67	609	408	1007	45

All measurements in millimetres unless marked (°) for angles.
