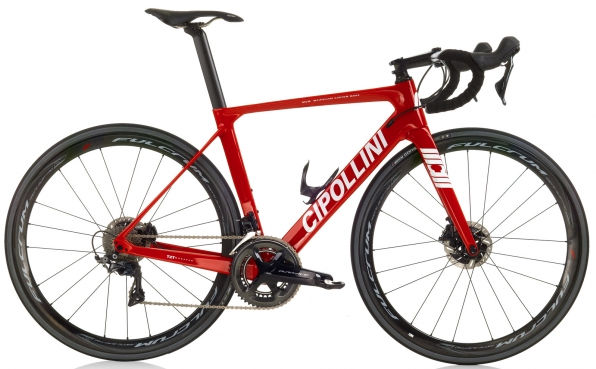

2019 Cipollini MCM Disc geometry
Full frame geometry for the 2019 Cipollini MCM Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 367 | 74.8 | 70.8 | 110 | 505 | 405 | 641 | 71 | 570 | 405 | 964 | 45 |
| S | 524 | 377 | 74.5 | 71.5 | 125 | 520 | 430 | 659 | 71 | 578 | 405 | 972 | 45 |
| M | 535 | 381 | 74 | 72 | 135 | 535 | 455 | 675 | 71 | 584 | 405 | 978 | 45 |
| ML | 544 | 389 | 73.8 | 72.5 | 143 | 548 | 470 | 688 | 70 | 587 | 405 | 982 | 45 |
| L | 554 | 396 | 73.5 | 73 | 153 | 560 | 490 | 703 | 69 | 596 | 405 | 991 | 45 |
| XL | 569 | 401 | 73 | 73.2 | 171 | 575 | 515 | 721 | 67 | 605 | 405 | 1001 | 45 |
| XXL | 589 | 405 | 72.5 | 73.5 | 190 | 592 | 540 | 737 | 67 | 607 | 405 | 1003 | 45 |
All measurements in millimetres unless marked (°) for angles.
