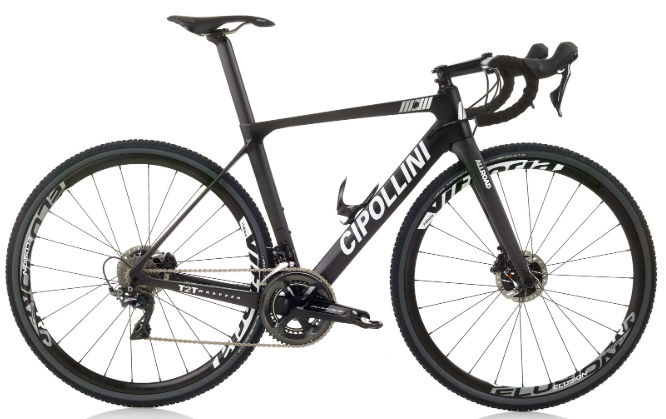

2019 Cipollini MCM Allroad geometry
Full frame geometry for the 2019 Cipollini MCM Allroad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 359 | 73.5 | 69 | 105 | 512 | 445 | 738 | 73 | 589 | 415 | 993 | 50 | 82 |
| S | 530 | 370 | 73.2 | 70.2 | 110 | 530 | 460 | 751 | 73 | 592 | 415 | 996 | 50 | 74 |
| M | 554 | 380 | 73 | 71.7 | 130 | 550 | 490 | 778 | 73 | 597 | 415 | 1001 | 50 | 64 |
| L | 579 | 391 | 72.8 | 72.5 | 152 | 570 | 520 | 807 | 73 | 607 | 417 | 1013 | 50 | 59 |
| XL | 605 | 399 | 72.5 | 72 | 178 | 590 | 545 | 834 | 73 | 620 | 417 | 1026 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
