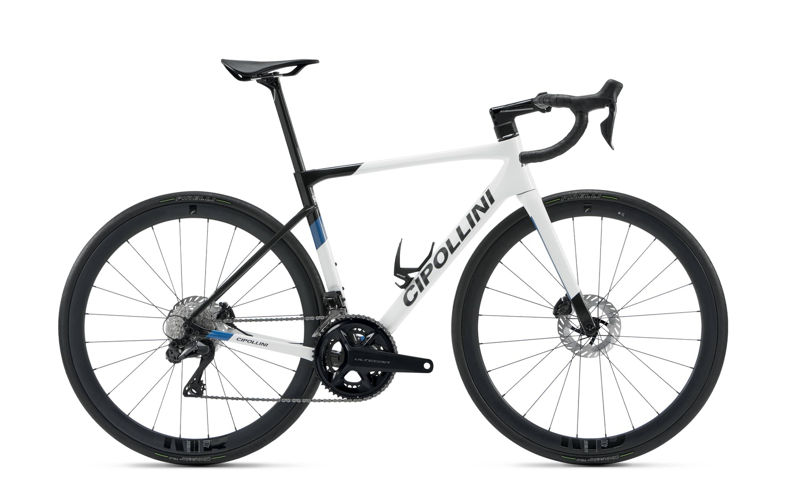

2022 Cipollini Dolomia geometry
Full frame geometry for the 2022 Cipollini Dolomia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 367 | 74.7 | 70.8 | 108 | 506 | 429 | 71 | 571 | 410 | 45 |
| S | 524 | 377 | 74.3 | 71.4 | 124 | 524 | 450 | 71 | 581 | 410 | 45 |
| M | 539 | 384 | 73.9 | 72.2 | 136 | 539 | 479 | 71 | 585 | 410 | 45 |
| L | 560 | 397 | 73.4 | 72.7 | 159 | 564 | 514 | 69 | 601 | 410 | 45 |
| XL | 585 | 403 | 73.2 | 73.3 | 184 | 580 | 549 | 68 | 609 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
