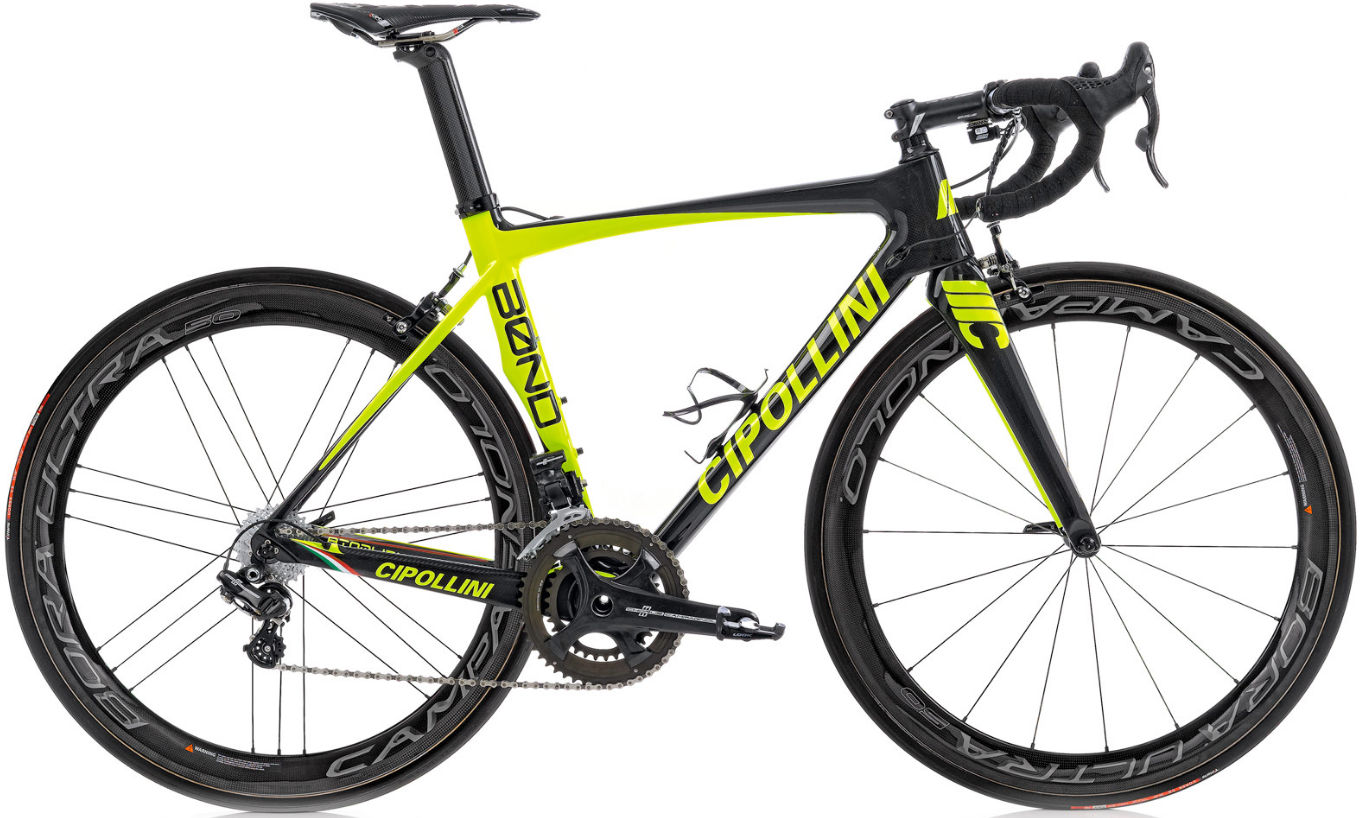

2014 Cipollini Bond geometry
Full frame geometry for the 2014 Cipollini Bond, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 498 | 367 | 74.5 | 71 | 105 | 507 | 490 | 760 | 69 | 569 | 405 | 964 | 45 | 67 |
| S | 509 | 374 | 74 | 72 | 115 | 520 | 520 | 782 | 69 | 576 | 405 | 971 | 45 | 61 |
| M | 531 | 383 | 73.5 | 73 | 132 | 540 | 540 | 804 | 69 | 583 | 405 | 978 | 45 | 55 |
| L | 551 | 396 | 73.3 | 73 | 152 | 560 | 560 | 825 | 69 | 594 | 405 | 989 | 45 | 55 |
| XL | 574 | 405 | 73 | 73.5 | 175 | 580 | 580 | 847 | 69 | 607 | 407 | 1004 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
