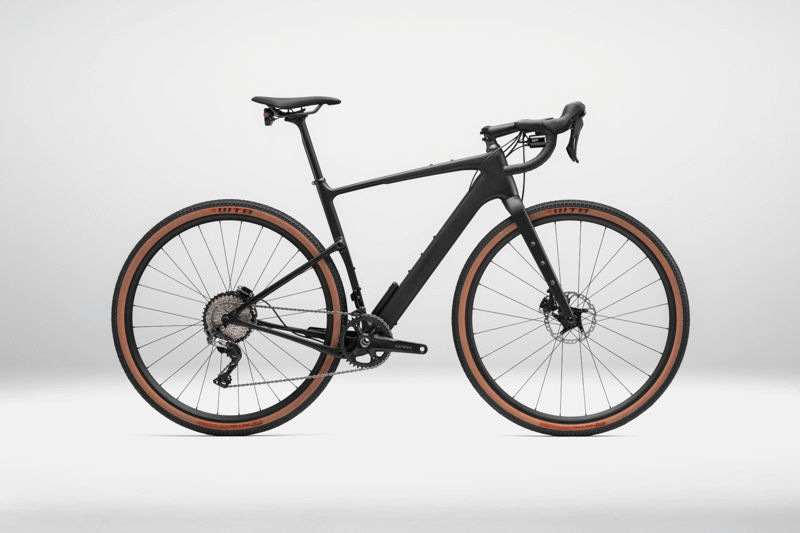

2022 Cannondale Topstone geometry
Full frame geometry for the 2022 Cannondale Topstone , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 371 | 73.1 | 70 | 105 | 533 | 704 | 74 | 601 | 420 | 1010 | 55 | 69 |
| SM | 551 | 377 | 73.1 | 71.2 | 123 | 544 | 745 | 69 | 603 | 420 | 1013 | 55 | 62 |
| MD | 574 | 383 | 73.1 | 71.2 | 150 | 557 | 785 | 67 | 617 | 420 | 1029 | 55 | 62 |
| LG | 600 | 390 | 73.1 | 71.2 | 177 | 572 | 823 | 67 | 633 | 420 | 1044 | 55 | 62 |
| XL | 624 | 397 | 73.1 | 71.2 | 205 | 587 | 857 | 64 | 649 | 420 | 1061 | 55 | 62 |
All measurements in millimetres unless marked (°) for angles.
