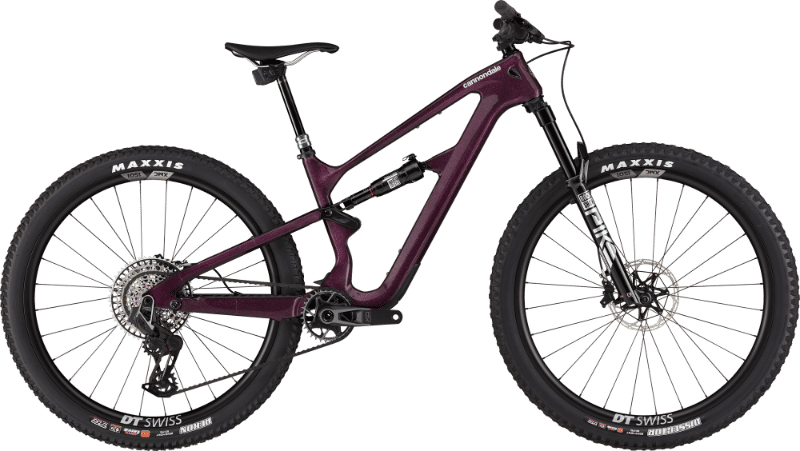

2026 Cannondale Habit geometry
Full frame geometry for the 2026 Cannondale Habit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 575 | 405 | 77.5 | 65.5 | 100 | 527 | 360 | 705 | 16 | 696 | 434 | 1129 | 37 | 122 |
| SM | 623 | 430 | 77.5 | 65.5 | 110 | 563 | 380 | 730 | 38 | 738 | 434 | 1170 | 42 | 127 |
| MD | 632 | 455 | 77.5 | 65.5 | 120 | 590 | 400 | 735 | 38 | 767 | 435 | 1200 | 42 | 127 |
| LG | 641 | 480 | 77.5 | 65.5 | 130 | 617 | 445 | 751 | 38 | 796 | 440 | 1234 | 42 | 127 |
| XL | 650 | 515 | 77.5 | 65.5 | 140 | 654 | 500 | 762 | 38 | 835 | 445 | 1278 | 42 | 127 |
All measurements in millimetres unless marked (°) for angles.
