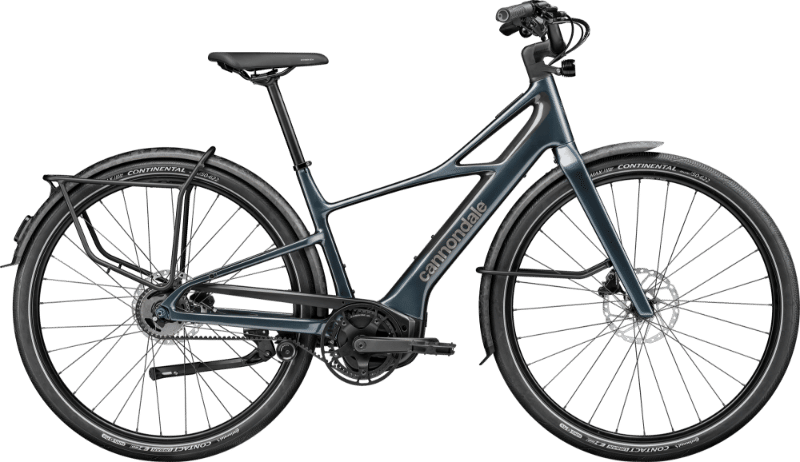

2026 Cannondale FlyingV geometry
Full frame geometry for the 2026 Cannondale FlyingV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 580 | 400 | 71 | 72 | 124 | 526 | 387 | 634 | 80 | 552 | 471 | 1011 | 55 | 61 |
| MD | 614 | 420 | 71 | 72 | 159 | 565 | 444 | 649 | 80 | 590 | 471 | 1049 | 55 | 61 |
| LG | 649 | 440 | 71 | 72 | 196 | 603 | 501 | 662 | 80 | 627 | 471 | 1086 | 55 | 61 |
| XL | 683 | 460 | 71 | 72 | 232 | 642 | 558 | 684 | 80 | 665 | 471 | 1125 | 55 | 61 |
All measurements in millimetres unless marked (°) for angles.
