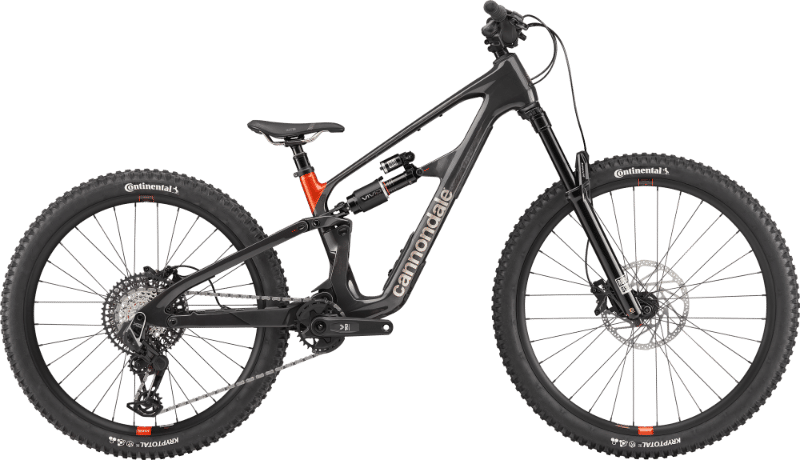

2026 Cannondale Bad Habit geometry
Full frame geometry for the 2026 Cannondale Bad Habit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 630 | 430 | 77.7 | 64 | 110 | 565 | 355 | 734 | 25 | 764 | 430 | 1195 | 44 | 135 |
| MD | 641 | 455 | 77.7 | 64 | 120 | 592 | 380 | 737 | 25 | 793 | 430 | 1224 | 44 | 135 |
| LG | 648 | 480 | 77.8 | 64 | 130 | 618 | 420 | 739 | 25 | 822 | 435 | 1256 | 44 | 135 |
| XL | 657 | 515 | 77.8 | 64 | 140 | 655 | 455 | 746 | 25 | 862 | 435 | 1295 | 44 | 135 |
All measurements in millimetres unless marked (°) for angles.
