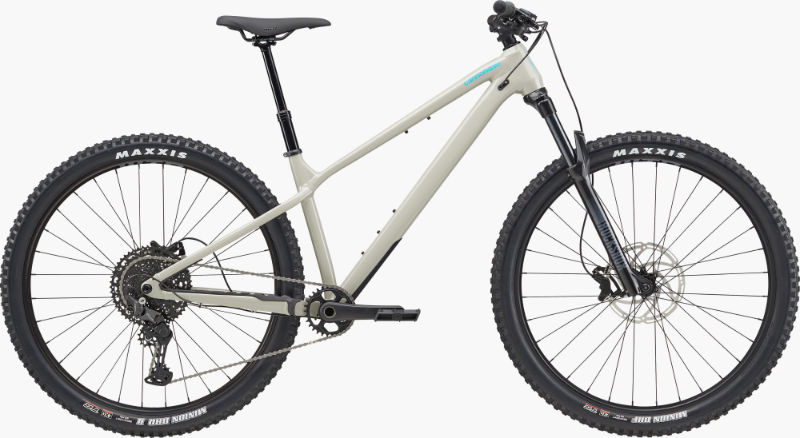

2026 Cannondale Habit HT geometry
Full frame geometry for the 2026 Cannondale Habit HT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 634 | 415 | 75.4 | 64 | 110 | 573 | 380 | 710 | 55 | 742 | 440 | 1177 | 44 | 132 |
| MD | 643 | 440 | 75 | 64 | 120 | 600 | 400 | 730 | 55 | 771 | 440 | 1206 | 44 | 132 |
| LG | 653 | 465 | 73.8 | 64 | 130 | 628 | 440 | 740 | 55 | 801 | 440 | 1235 | 44 | 132 |
| XL | 662 | 500 | 72.7 | 64 | 140 | 665 | 480 | 760 | 55 | 840 | 440 | 1275 | 44 | 132 |
All measurements in millimetres unless marked (°) for angles.
