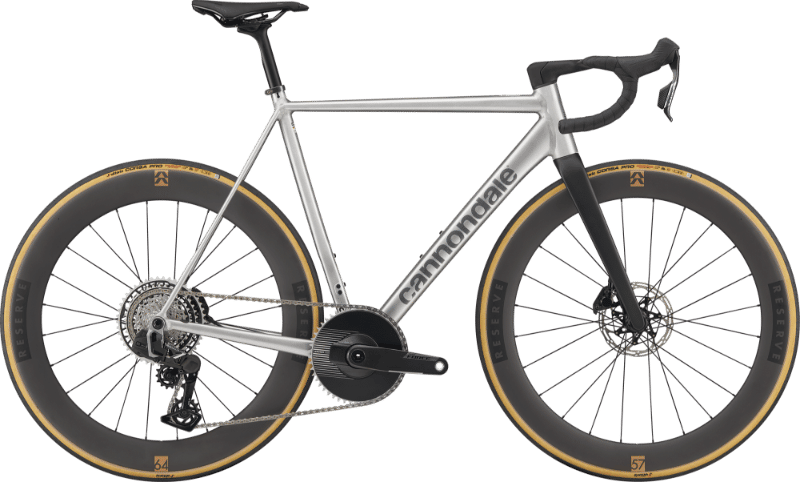

2026 Cannondale CAAD14 geometry
Full frame geometry for the 2026 Cannondale CAAD14, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 377 | 74.1 | 71.2 | 98 | 521 | 490 | 732 | 74 | 587 | 415 | 990 | 55 | 58 |
| 51 | 520 | 381 | 73.7 | 71.2 | 117 | 533 | 525 | 761 | 72 | 596 | 415 | 1001 | 55 | 58 |
| 54 | 540 | 386 | 73.3 | 71.2 | 138 | 548 | 555 | 785 | 72 | 608 | 415 | 1012 | 55 | 58 |
| 56 | 560 | 392 | 72.9 | 73 | 151 | 564 | 580 | 809 | 69 | 593 | 415 | 998 | 45 | 58 |
| 58 | 580 | 398 | 72.5 | 73 | 172 | 581 | 600 | 828 | 69 | 605 | 415 | 1011 | 45 | 58 |
| 61 | 610 | 407 | 72.1 | 73 | 203 | 604 | 620 | 851 | 69 | 623 | 415 | 1029 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
