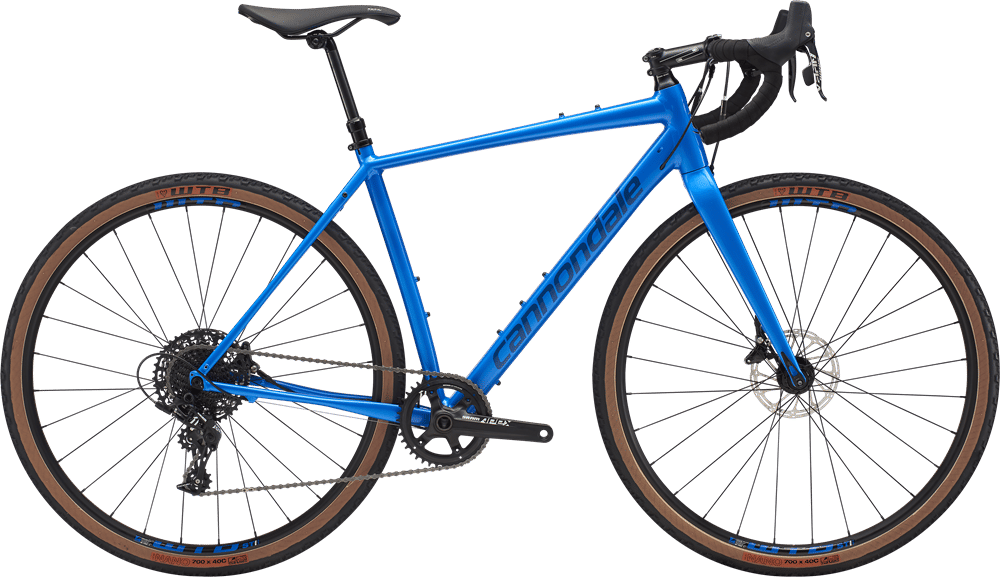

2019 Cannondale Topstone geometry
Full frame geometry for the 2019 Cannondale Topstone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 368 | 73.1 | 70 | 89 | 525 | 410 | 703 | 75 | 593 | 430 | 1011 | 55 | 72 |
| S | 549 | 377 | 73.1 | 71 | 118 | 544 | 458 | 744 | 75 | 603 | 430 | 1022 | 55 | 65 |
| M | 579 | 385 | 73.1 | 71 | 149 | 561 | 505 | 787 | 75 | 621 | 430 | 1040 | 55 | 65 |
| L | 610 | 394 | 73.1 | 71 | 182 | 579 | 553 | 825 | 75 | 641 | 430 | 1060 | 55 | 65 |
| XL | 640 | 402 | 73.1 | 71 | 214 | 596 | 600 | 863 | 75 | 659 | 430 | 1078 | 55 | 65 |
All measurements in millimetres unless marked (°) for angles.
