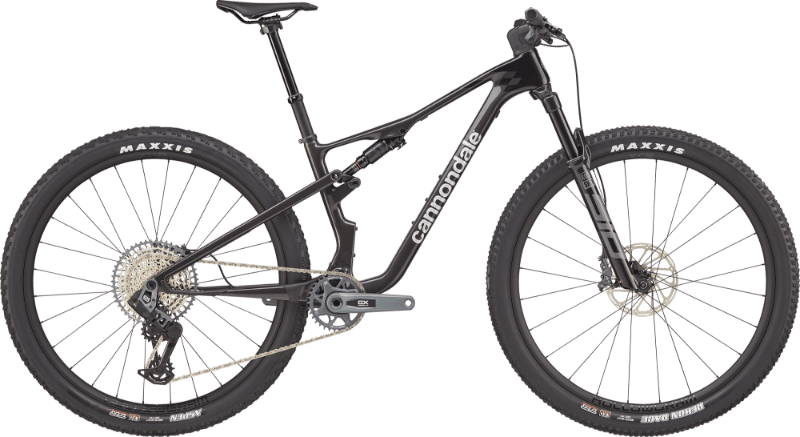

2026 Cannondale Scalpel geometry
Full frame geometry for the 2026 Cannondale Scalpel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 597 | 450 | 75.5 | 66.6 | 90 | 597 | 400 | 744 | 42 | 734 | 438 | 1189 | 44 | 112 |
| SM | 597 | 425 | 75.5 | 66.6 | 90 | 579 | 380 | 738 | 42 | 709 | 434 | 1140 | 44 | 112 |
| LG | 607 | 475 | 75.5 | 66.6 | 100 | 625 | 445 | 752 | 42 | 763 | 442 | 1202 | 44 | 112 |
| XL | 618 | 510 | 75.5 | 66.6 | 110 | 689 | 500 | 763 | 42 | 802 | 446 | 1245 | 44 | 112 |
All measurements in millimetres unless marked (°) for angles.
