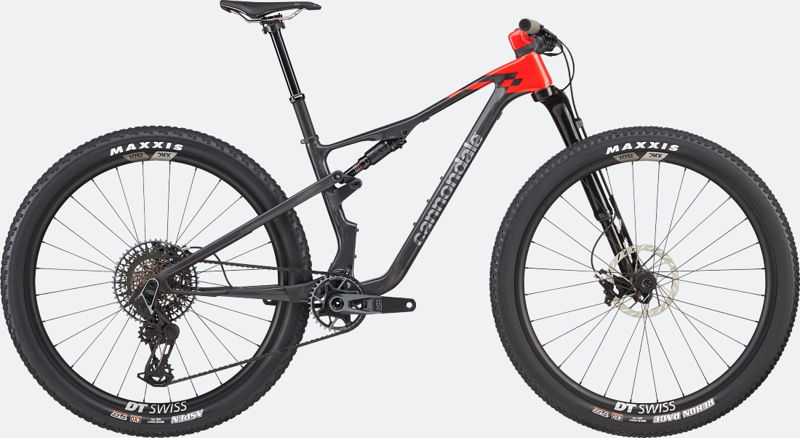

2024 Cannondale Scalpel geometry
Full frame geometry for the 2024 Cannondale Scalpel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 595 | 450 | 75.5 | 66.6 | 90 | 597 | 744 | 42 | 740 | 438 | 1175 | 50 | 105 |
| SM | 595 | 425 | 75.5 | 66.6 | 90 | 579 | 736 | 42 | 715 | 434 | 1146 | 50 | 105 |
| LG | 604 | 475 | 75.5 | 66.6 | 100 | 625 | 752 | 42 | 769 | 442 | 1208 | 50 | 105 |
| XL | 613 | 510 | 75.5 | 66.6 | 110 | 669 | 763 | 42 | 808 | 446 | 1251 | 50 | 150 |
All measurements in millimetres unless marked (°) for angles.
