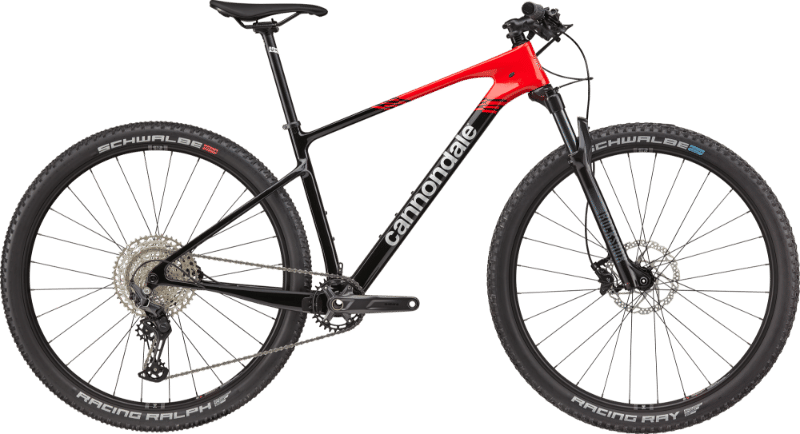

2026 Cannondale Scalpel HT geometry
Full frame geometry for the 2026 Cannondale Scalpel HT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 607 | 404 | 72.7 | 66.5 | 99 | 572 | 390 | 754 | 59 | 699 | 430 | 1123 | 50 | 109 |
| MD | 617 | 423 | 73.5 | 66.5 | 110 | 594 | 440 | 790 | 59 | 723 | 435 | 1151 | 50 | 109 |
| LG | 629 | 444 | 74.1 | 66.5 | 122 | 617 | 480 | 819 | 59 | 748 | 440 | 1181 | 50 | 109 |
| XL | 641 | 465 | 74.6 | 66.5 | 135 | 642 | 530 | 855 | 59 | 774 | 445 | 1212 | 50 | 109 |
All measurements in millimetres unless marked (°) for angles.
