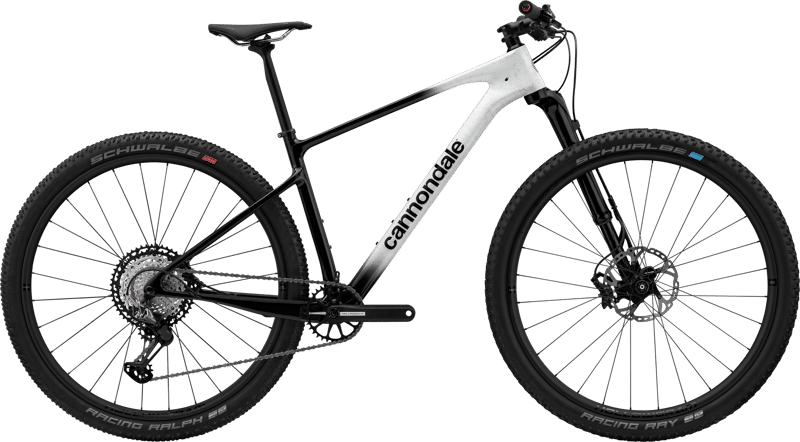

2022 Cannondale Scalpel HT geometry
Full frame geometry for the 2022 Cannondale Scalpel HT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 602 | 410 | 73.2 | 67 | 99 | 571 | 390 | 748 | 62 | 70.2 | 430 | 1124 | 5.5 | 100 |
| MD | 612 | 430 | 74 | 67 | 110 | 594 | 440 | 785 | 62 | 72.6 | 435 | 1154 | 5.5 | 100 |
| LG | 623 | 450 | 74.6 | 67 | 122 | 617 | 480 | 814 | 62 | 75 | 440 | 1183 | 5.5 | 100 |
| XL | 635 | 470 | 75 | 67 | 135 | 640 | 530 | 850 | 62 | 77.6 | 445 | 1214 | 5.5 | 100 |
All measurements in millimetres unless marked (°) for angles.
