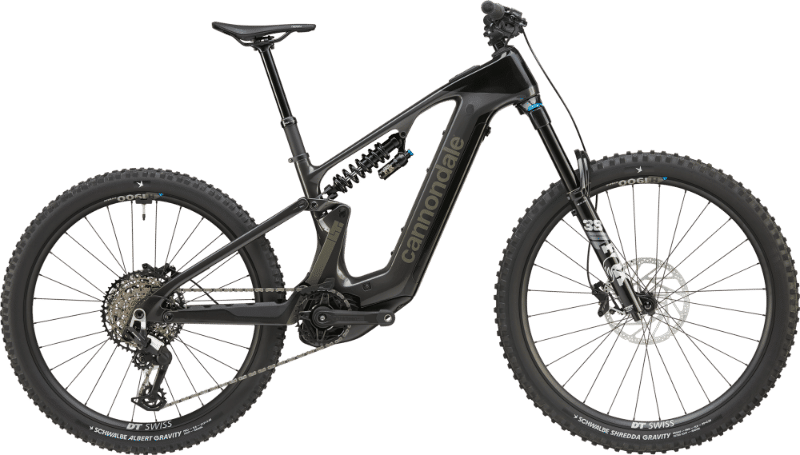

2025 Cannondale Moterra LT geometry
Full frame geometry for the 2025 Cannondale Moterra LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 647 | 450 | 77.5 | 64.4 | 125 | 593 | 400 | 775 | 15 | 804 | 445 | 1249 | 44 | 136 |
| SM | 647 | 425 | 77.5 | 64.4 | 125 | 568 | 380 | 765 | 15 | 779 | 445 | 1224 | 44 | 136 |
| LG | 656 | 475 | 77.5 | 64.4 | 135 | 620 | 420 | 788 | 15 | 834 | 450 | 1283 | 44 | 136 |
| XL | 665 | 510 | 77.5 | 64.4 | 145 | 657 | 460 | 801 | 15 | 873 | 450 | 1323 | 44 | 136 |
All measurements in millimetres unless marked (°) for angles.
