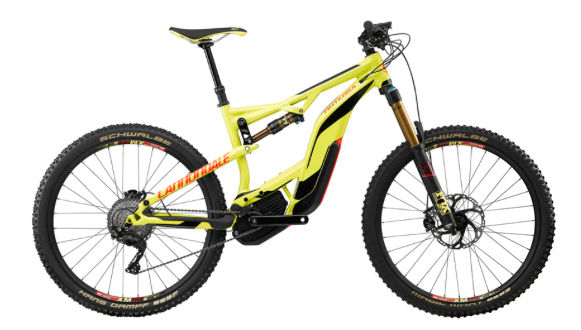

2017 Cannondale Moterra LT geometry
Full frame geometry for the 2017 Cannondale Moterra LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 396 | 74.8 | 66 | 110 | 556 | 400 | 770 | 30 | 714 | 443 | 1157 | 50 | 103 |
| M | 612 | 423 | 74.8 | 66 | 122 | 586 | 440 | 780 | 30 | 746 | 443 | 1189 | 50 | 103 |
| L | 623 | 450 | 74.8 | 66 | 134 | 616 | 480 | 780 | 30 | 778 | 443 | 1221 | 50 | 103 |
| XL | 623 | 477 | 74.8 | 66 | 134 | 643 | 520 | 790 | 30 | 805 | 443 | 1248 | 50 | 103 |
All measurements in millimetres unless marked (°) for angles.
