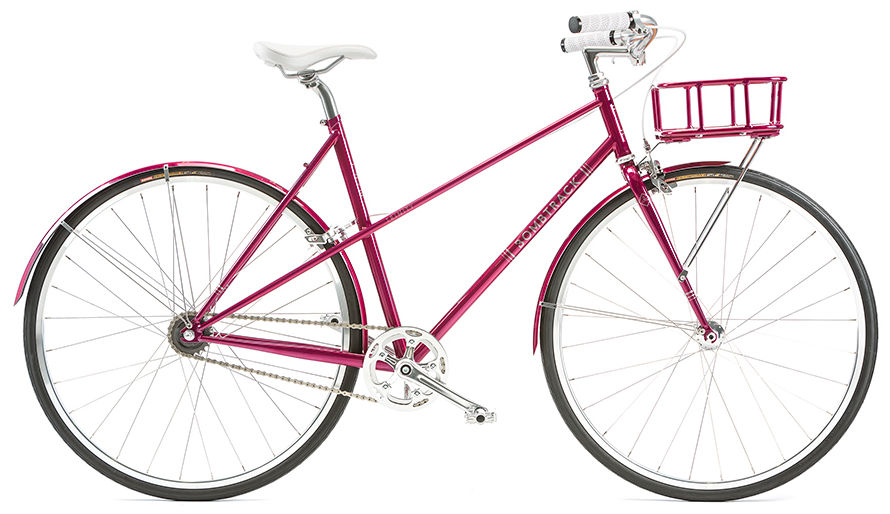

2016 Bombtrack Trinity geometry
Full frame geometry for the 2016 Bombtrack Trinity, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 533 | 380 | 74 | 71.5 | 110 | 530 | 430 | 663 | 70 | 434 | 1015 | 45 |
| M | 565 | 391 | 74 | 71.5 | 147 | 555 | 490 | 683 | 70 | 434 | 1032 | 45 |
| L | 584 | 411 | 74 | 71.5 | 167 | 579 | 520 | 696 | 70 | 434 | 1059 | 45 |
All measurements in millimetres unless marked (°) for angles.
