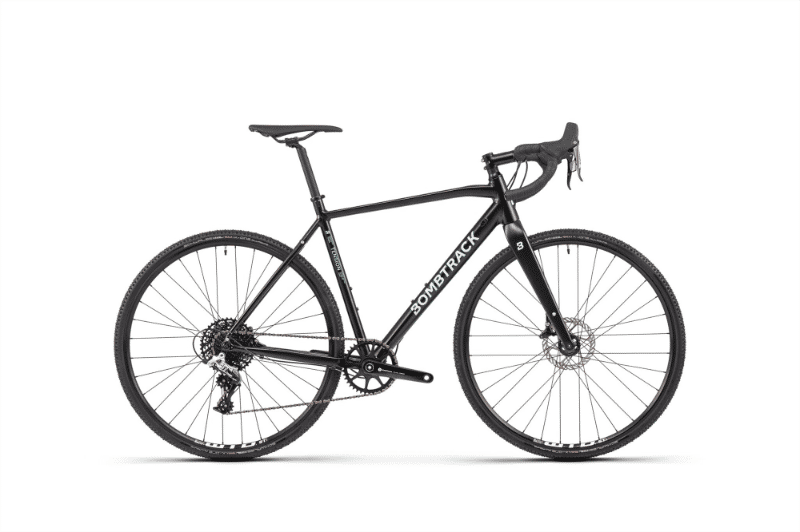

2025 Bombtrack Tension geometry
Full frame geometry for the 2025 Bombtrack Tension, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 355 | 73.5 | 71 | 100 | 507 | 460 | 734 | 55 | 563 | 410 | 967 | 45 | 67 |
| S | 530 | 366 | 73.5 | 71.5 | 115 | 523 | 490 | 757 | 55 | 575 | 410 | 979 | 45 | 64 |
| M | 563 | 380 | 73 | 71.5 | 139 | 552 | 530 | 799 | 65 | 598 | 425 | 1014 | 45 | 70 |
| L | 587 | 391 | 73 | 72 | 162 | 570 | 560 | 825 | 65 | 611 | 425 | 1028 | 45 | 66 |
| XL | 603 | 402 | 73 | 72 | 179 | 586 | 590 | 848 | 65 | 627 | 425 | 1044 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
